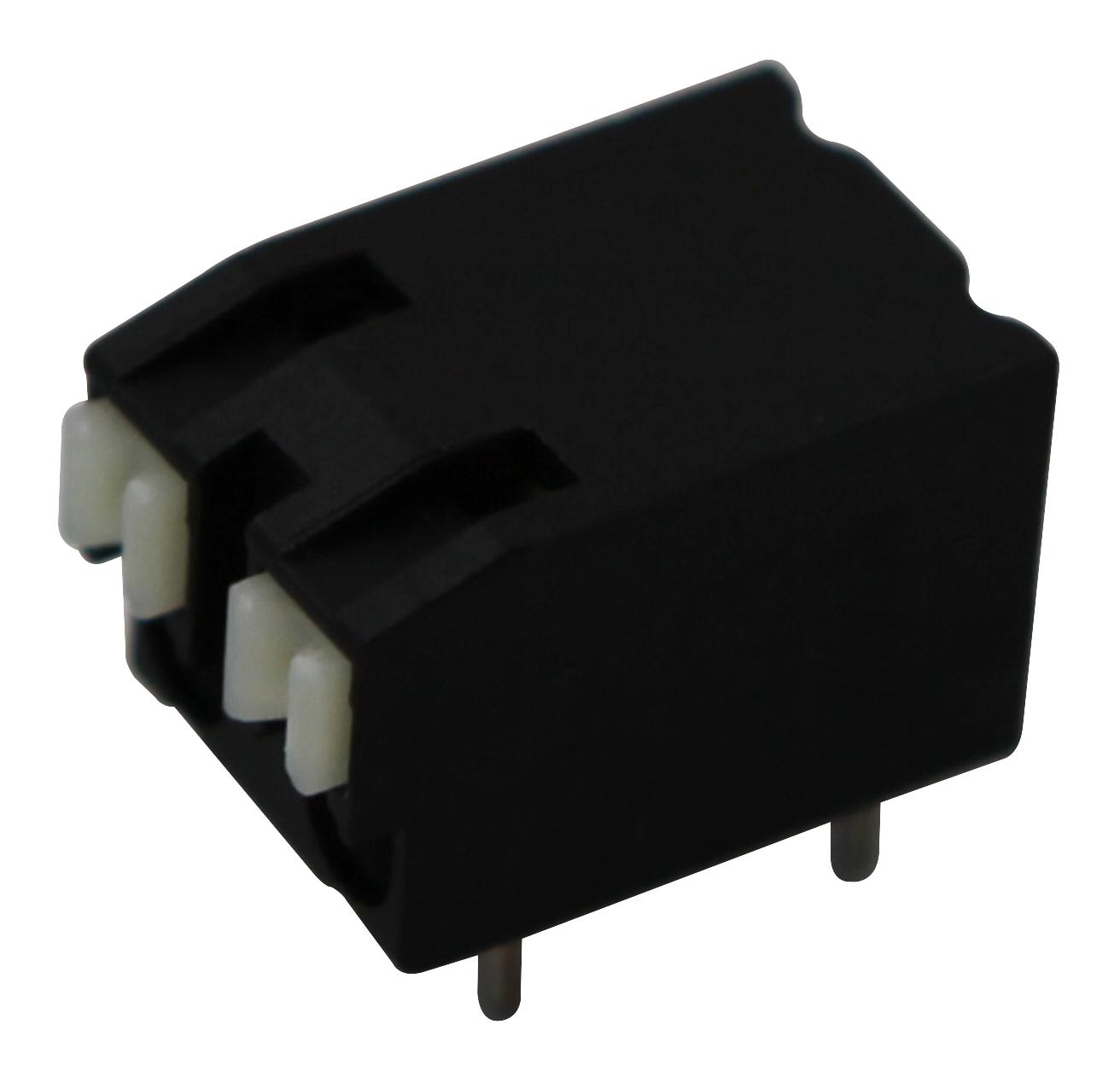

METZ CONNECT - AST2250202 - Standard Terminal Block, Wire to Board, 2 Contacts, 5 mm, Terminal Block, PCB, PCB Mount, 16 AWG
- Product Range: -
- No. of Contacts: 2Contacts
- Pitch Spacing: 5mm
- Connector Type: Terminal Block, PCB
- Connector Mounting: PCB Mount
- Wire Size AWG Max: 16AWG
- Wire Size AWG Min: 28AWG
- Contact Plating: Tin Plated Contacts
- Contact Material: Copper
- SVHC: No SVHC (07-Jul-2017)
- Block Orientation: Through Hole Right Angle
- Colour: Black
- Conductor Area CSA: 1.5mm²
- IP / NEMA Rating: IP20
- No. of Positions: 2Ways
- Rated Current: 17.5A
- Rated Voltage: 250V
- Voltage Rating VAC: 300V
- Wire Connection Method: Push In
