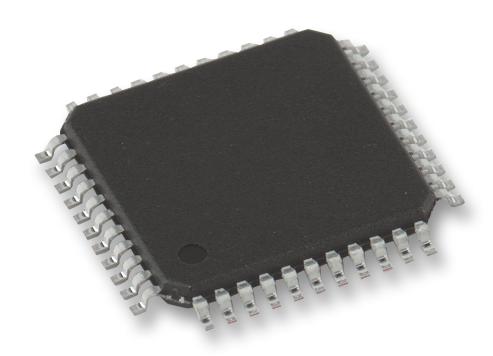

MICROCHIP - ATF1504ASVL-20AU44 - CPLD, ATF15 Series, EEPROM, 64, 32 I/O's, TQFP, 44 Pins, 83.3 MHz
- CPLD Type: EEPROM
- No. of Macrocells: 64
- No. of I/O's: 32I/O's
- Logic Case Style: TQFP
- No. of Pins: 44Pins
- Frequency: 83.3MHz
- Supply Voltage Min: 3V
- Supply Voltage Max: 3.6V
- Propagation Delay: 20ns
- Global Clock Setup Time: 13.5ns
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: ATF15 Series
- RoHS Phthalates Compliant: Yes
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (27-Jun-2018)
- IC Temperature Range: Industrial
- Logic IC Base Number: 1504
- Logic IC Function: ATF1504ASVL
- No. of Gates: 1500
- Operating Temperature Range: -40°C to +85°C
- Supply Voltage: 3.3V
- Supply Voltage Range: 3V to 3.6V
- Termination Type: Surface Mount Device
