description

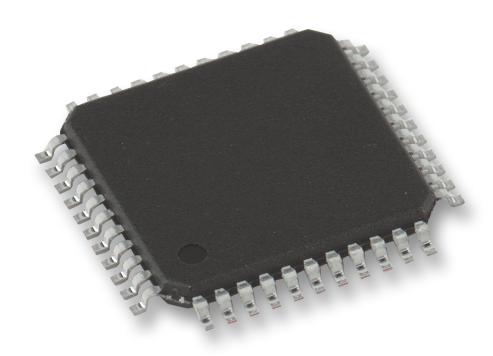

MICROCHIP - ATMEGA16U4-AU - MCU-Application Specific 8BIT, MEGAAVR, 16MHz, 2.5 KB RAM/16 KB Program, 2.7V-5.5Vin, TQFP-44
- Product Range: AVR ATmega Family ATmega16 Series Microcontrollers
- Architecture: megaAVR
- MCU Core Size: 8bit
- Program Memory Size: 16KB
- RAM Memory Size: 2.5KB
- CPU Speed: 16MHz
- No. of I/O's: 26I/O's
- MCU Case Style: TQFP
- No. of Pins: 44Pins
- Embedded Interface Type: I2C, SPI, UART, USART
- MCU Applications: USB Microcontroller
- Supply Voltage Min: 2.7V
- Supply Voltage Max: 5.5V
- MCU Family: AVR ATmega
- MCU Series: ATmega16
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (27-Jun-2018)
- Base Number: megaAVR
- Controller Family/Series: AVR MEGA
- Device Marking: ATMEGA16U4-AU
- EEPROM Memory Size: 512Byte
- Flash Memory Size: 16KB
- Logic Function Number: 16
- MPU Core Size: 8bit
- No. of ADC Inputs: 12
- No. of PWM Channels: 14
- No. of Timers: 5
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External, Internal
- Peripherals: ADC, Comparator, PWM, Timer
