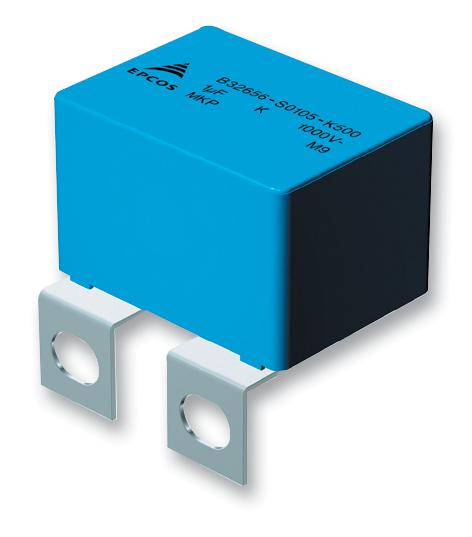

EPCOS - B32656S0105K561 - Power Film Capacitor, Metallized PP, Radial Box - Tabs, 1 µF, ± 5%, Snubber, Panel Mount
- Capacitance: 1µF
- Voltage Rating: 1kV
- Capacitor Dielectric Type: PP (Polypropylene)
- Capacitance Tolerance: ± 5%
- Product Range: B32656S Series
- Capacitor Case Style: -
- Capacitor Terminals: -
- Lead Spacing: 28mm
- Operating Temperature Min: -55°C
- Operating Temperature Max: 100°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Capacitance Tolerance ±: ± 5%
- Capacitor Mounting: Through Hole
- Climatic Category: 55/100/56
- Dissipation Factor: 0.5%
- Dissipation Factor Frequency: 1kHz
- Dissipation Factor Temperature: 25°C
- External Depth: 39.5mm
- External Length / Height: 20mm
- External Width: 42mm
- Flammability Rating: UL94V-0
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +100°C
- Operating life Time: 200000h
- Rate of Voltage Change dv / dt: 90V/µs
- Tolerance +: 5%
- Tolerance -: 5%
- Voltage Rating V DC: 1kV
- Voltage Rating VAC: 500V
