B32913A3474M000 Cap, 0.47µF, 20%, PP EPCOS

EPCOSUGS :B32913A3474M000 Code de commande:1781913

Prix:
Prix ​​promotionnel€2,59

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1679 unité)

Documents et téléchargements

description

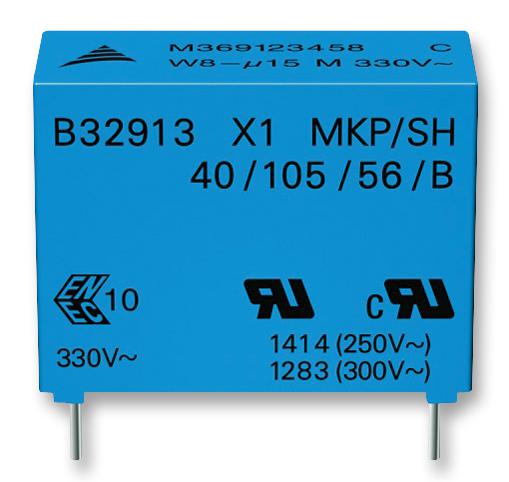

EPCOS - B32913A3474M000 - Safety Capacitor, Metallized PP, Radial Box - 2 Pin, 0.47 µF, ± 20%, X1, Through Hole

  • Capacitance: 0.47µF
  • Suppression Class: X1
  • Product Range: B32913 Series
  • Voltage Rating X: 330V
  • Voltage Rating Y: -
  • Capacitor Dielectric Type: PP (Polypropylene)
  • Capacitance Tolerance: ± 20%
  • dv/dt Rating: 200V/µs
  • Capacitor Case Style: -
  • Capacitor Terminals: Radial Leaded
  • Operating Temperature Min: -
  • Operating Temperature Max: 110°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • Capacitor Application: Safety / Suppression
  • External Depth: 10.5mm
  • External Length / Height: 18.5mm
  • External Width: 26.5mm
  • Height: 18.5mm
  • Lead Diameter: 0.8mm
  • Lead Spacing: 22.5mm
  • Voltage Rating VAC: 330V
