B32923C3334M000 Cap, 0.33µF, 20%, PP EPCOS

EPCOSUGS :B32923C3334M000 Code de commande:1200831

Prix:
Prix ​​promotionnel€1,52

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (10469 unité)

Documents et téléchargements

description

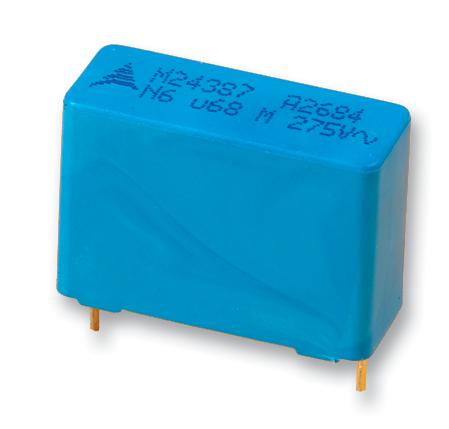

EPCOS - B32923C3334M000 - Safety Capacitor, Metallized PP, Radial Box - 2 Pin, 0.33 µF, ± 20%, X2, Through Hole

  • Capacitance: 0.33µF
  • Suppression Class: X2
  • Product Range: B32923C Series
  • Voltage Rating X: 305V
  • Voltage Rating Y: -
  • Capacitor Dielectric Type: PP (Polypropylene)
  • Capacitance Tolerance: ± 20%
  • dv/dt Rating: 170V/µs
  • Capacitor Case Style: -
  • Capacitor Terminals: Radial Leaded
  • Operating Temperature Min: -
  • Operating Temperature Max: 110°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • Capacitor Application: Safety / Suppression
  • Climatic Category: 40/100/21
  • External Depth: 6mm
  • External Length / Height: 26.5mm
  • External Width: 15mm
  • Flammability Rating: UL94V-0
  • Lead Diameter: 0.8mm
  • Lead Length: 6mm
  • Lead Spacing: 22.5mm
  • Operating Temperature Range: -40°C to +110°C
  • Voltage Rating VAC: 305V
