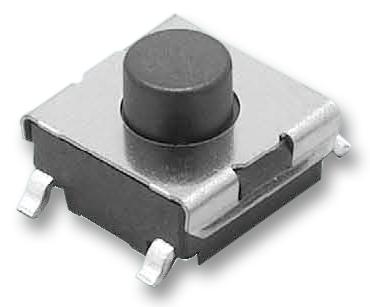

B3FS-1012 Tactile Switch, 0.05A, 24Vdc, Illum, SMT Omron

OMRONUGS :B3FS-1012 Code de commande:1181017

Prix:
Prix ​​promotionnel€1,16

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (97 unité)

Documents et téléchargements

description

OMRON - B3FS-1012 - Tactile Switch, B3FS, Top Actuated, Surface Mount, Plunger for Cap, 150 gf, 50mA at 24VDC

  • Product Range: B3FS Series
  • Actuator Orientation: Top Actuated
  • Switch Mounting: SMD
  • Actuator Style: Plunger for Cap
  • Actuating Force: 150gf
  • Contact Rating: 50mA at 24VDC
  • Switch Dimensions (L x W): 6.3mm x 6.3mm
  • IP Rating: IP00
  • Illumination: Non Illuminated
  • Actuation Type: Top
  • Actuator / Cap Colour: White
  • Contact Configuration: SPST-NO
  • Contact Current DC Max: 50mA
  • Contact Current Max: 50mA
  • Contact Resistance: 100mohm
  • Contact Voltage DC Max: 24V
  • Contact Voltage DC Nom: 24V
  • External Depth: 6mm
  • External Length / Height: 4.3mm
  • External Width: 6mm
  • Insulation Resistance: 100Mohm
  • No. of Mechanical Operations: 1000000
  • Operating Force: 1.47N
  • Operating Force Max: 1.47N
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -25°C
  • Pre-travel: 0.25mm
  • Resistive Current Rating: 50mA
  • Return Force Min: 50gf
  • Switch Operation: Off-On
  • Switch Terminals: Solder
