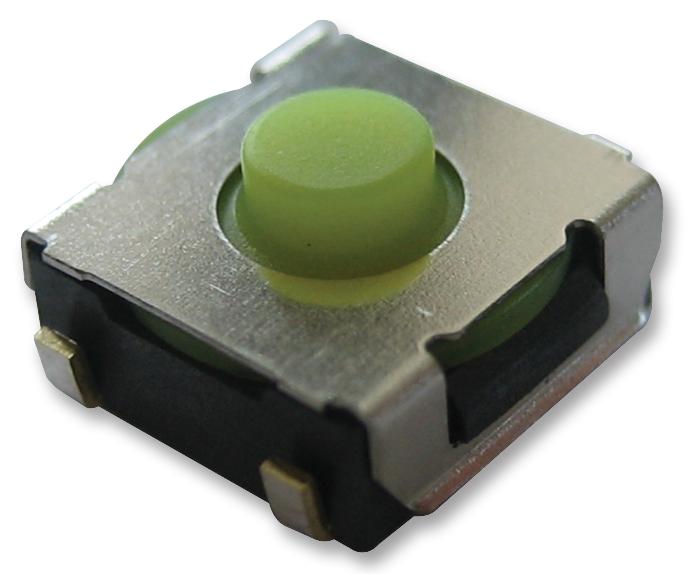

OMRON - B3SL-1002P. - Tactile Switch, B3SL, Top Actuated, Surface Mount, Round Button, 200 gf, 50mA at 12VDC
- Product Range: B3SL Series
- Actuator Orientation: Top Actuated
- Switch Mounting: SMD
- Actuator Style: Round Button
- Actuating Force: 200gf
- Contact Rating: 50mA at 12VDC
- Switch Dimensions (L x W): 6.5mm x 6.2mm
- IP Rating: IP67
- Illumination: Non Illuminated
- Actuation Type: Top
- Contact Configuration: SPST-NO
- Contact Current DC Max: 50mA
- Contact Current Max: 50mA
- Contact Resistance: 100mohm
- Contact Voltage DC Max: 12V
- Contact Voltage DC Min: 5VDC
- Contact Voltage DC Nom: 12V
- Dielectric Strength VDC: 250V
- External Depth: 6.2mm
- External Length / Height: 3.4mm
- External Width: 6.4mm
- Insulation Resistance: 100Mohm
- Insulation Resistance Voltage: 250V
- No. of Mechanical Operations: 100000
- Operating Force: 1.96N
- Operating Temperature Max: 90°C
- Operating Temperature Min: -25°C
- Pre-travel: 0.3mm
- Release Force: 0.35N
- Switch Operation: Off-On
- Switch Terminals: Solder
- Switching Current DC Max: 50mA
- Switching Current DC Min: 1mA
