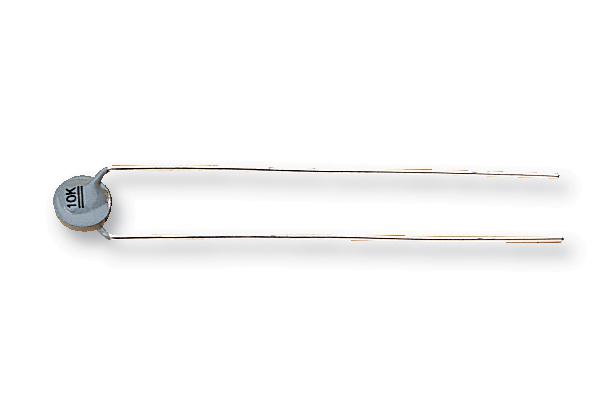

B57164K0102J000 Thermistor, NTC EPCOS

EPCOSUGS :B57164K0102J000 Code de commande:9753419

Prix:
Prix ​​promotionnel€0,85

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2963 unité)

Documents et téléchargements

description

EPCOS - B57164K0102J000 - Thermistor, NTC, 1 kohm, B57164K Series, 3730 K, Through Hole, Radial Leaded

  • Zero Power Resistance at 25°C: 1kohm
  • Product Range: B57164K Series
  • Thermistor Mounting: Through Hole
  • Beta Value (K): 3730K
  • Thermistor Case Style: -
  • Thermistor Terminals: Radial Leaded
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 125°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • Beta Value Lower Limit Temperature: 25°C
  • Body Diameter: 5.5mm
  • Full Power Rating Temperature: 25°C
  • Lead Length: 36mm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -55°C to +125°C
  • Power Dissipation Ptot Max: 450mW
  • Resistance: 1kohm
  • Resistance Temperature: 25°C
  • Resistance Tolerance: ± 5%
  • Resistance Tolerance +: 5%
  • Resistance Tolerance -: 5%
  • Temperature Upper Limit Beta Value: 100°C
  • Thermistor Tolerance: -5% to +5%
  • Thermistor Type: NTC
