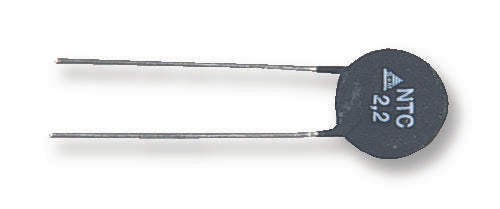

EPCOS - B57236S0509M000 - Thermistor, NTC, Disc, 5 ohm, ±20%, 2 Pins, Radial Leaded, B57236S0 Series
- Product Range: B57236S0 Series
- Disc Size: 11.5mm
- Zero Power Resistance at 25°C: 5ohm
- Approvals: UL
- Maximum Energy Rating at 25°C: -
- Maximum Steady State Current at 25°C: 4.5A
- SVHC: No SVHC (07-Jul-2017)
- Beta Value (K): 2800K
- Beta Value Lower Limit Temperature: 25°C
- Body Diameter: 11.5mm
- Current Max: 4.5A
- Current Temperature: 25°C
- Lead Length: 25mm
- No. of Pins: 2Pins
- Operating Temperature Max: 170°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +170°C
- Resistance: 5ohm
- Resistance Temperature: 25°C
- Resistance Tolerance: ± 20%
- Resistance Tolerance +: 20%
- Resistance Tolerance -: 20%
- Temperature Upper Limit Beta Value: 100°C
- Thermistor Case Style: Radial Leaded
- Thermistor Tolerance: -20% to +20%
- Thermistor Type: NTC
