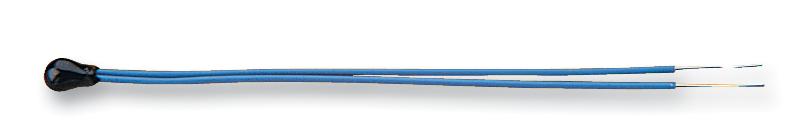

EPCOS - B57861S0104F040 - Thermistor, NTC, 100 kohm, B57861S Series, 4540 K, Through Hole, Wire Leaded
- Zero Power Resistance at 25°C: 100kohm
- Product Range: B57861S Series
- Thermistor Mounting: Through Hole
- Beta Value (K): 4540K
- Thermistor Case Style: -
- Thermistor Terminals: Wire Leaded
- Operating Temperature Min: -55°C
- Operating Temperature Max: 155°C
- Automotive Qualification Standard: AEC-Q200
- SVHC: No SVHC (27-Jun-2018)
- Beta Value Lower Limit Temperature: 25°C
- Body Diameter: 2.41mm
- Climatic Category: 55/155/56
- External Length / Height: 5mm
- Full Power Rating Temperature: 25°C
- Lead Diameter: 0.25mm
- Lead Length: 45mm
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +155°C
- Power Dissipation Ptot Max: 60mW
- Resistance: 100kohm
- Resistance Temperature: 25°C
- Resistance Tolerance: ± 1%
- Resistance Tolerance +: 1%
- Resistance Tolerance -: 1%
- Temperature Upper Limit Beta Value: 100°C
- Thermistor Tolerance: -1% to +1%
- Thermistor Type: NTC
