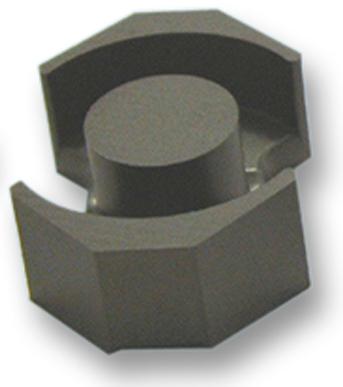

EPCOS - B65807J0000R087 - Transformer Cores, RM, RM6, N87, 28.6 mm, 36.6 mm²
- Core Type: RM
- Core Size: RM6
- Core Material Grade: N87
- For Use With: -
- Effective Magnetic Path Length: 28.6mm
- Ae Effective Cross Section Area: 36.6mm²
- Inductance Factor Al: 2.4µH
- Product Range: RM Series
- SVHC: No SVHC (27-Jun-2018)
- Accessory Type: Ferrite Core
- Al Tolerance Value +: 30%
- Al Tolerance Value -: 20%
- External Depth: 8.2mm
- External Length / Height: 6.25mm
- External Width: 12.4mm
- Material Grade: N87
