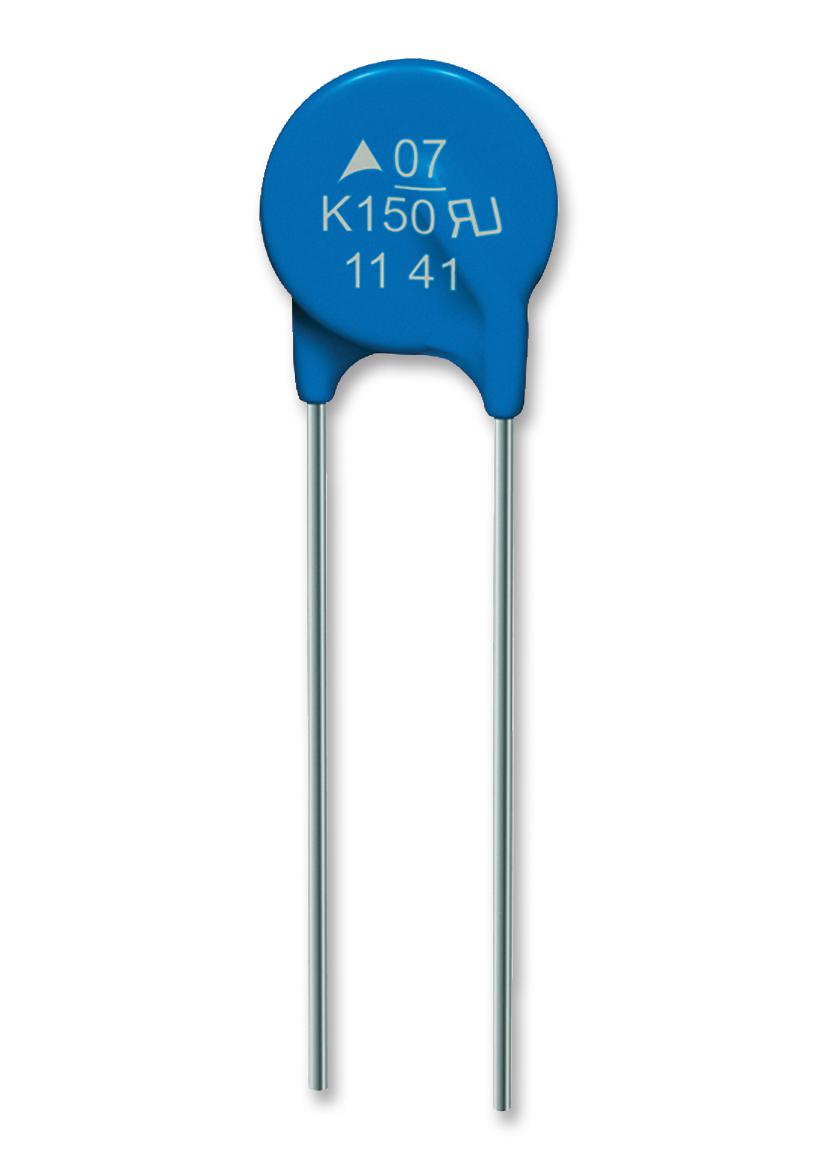

EPCOS - B72207S0271K101 - TVS Varistor, 275 V, 350 V, B722 Series, 710 V, Radial Leaded, Metal Oxide Varistor (MOV)
- Voltage Rating VAC: 275V
- Voltage Rating V DC: 350V
- Product Range: B722 Series
- Clamping Voltage Vc Max: 77V
- Varistor Case Style: Radial Leaded
- Varistor Type: Metal Oxide Varistor (MOV)
- Peak Surge Current @ 8/20µs: 1.2kA
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Peak Energy (10/1000uS): 21J
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- Approval Bodies: CECC, CSA, UL
- Body Diameter: 9mm
- Capacitance: 95pF
- Clamping Voltage: 710V
- Clamping Voltage @ 8/20µs Max: 710V
- External Length / Height: 11.5mm
- Lead Length: 30mm
- Operating Temperature Range: -40°C to +85°C
- Peak Pulse Current IPP @ 8/20µs: 1200A
- Suppressor Type: Varistor
- Surge Current: 1.2kA
- Transient Energy: 21J
- Varistor Voltage: 430V
- Varistor Voltage @ 1mA: 387V
- Varistor Voltage @ 1mA Max: 473V
- Varistor Voltage Tolerance +: 10%
