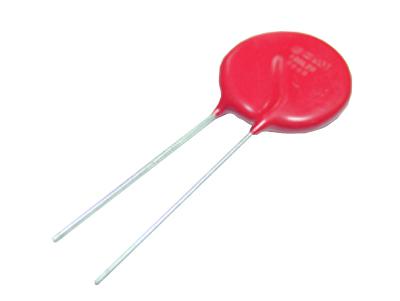

EPCOS - B72225S4551K101 - TVS Varistor, 550 V, 745 V, 1.5 kV, Disc 25mm, Metal Oxide Varistor (MOV)
- Voltage Rating VAC: 550V
- Voltage Rating V DC: 745V
- Product Range: -
- Clamping Voltage Vc Max: 1.5kV
- Varistor Case Style: Disc 25mm
- Varistor Type: Metal Oxide Varistor (MOV)
- Peak Surge Current @ 8/20µs: 20kA
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Peak Energy (10/1000uS): 780J
- SVHC: No SVHC (07-Jul-2017)
- Body Diameter: 27.5mm
- Capacitance: 680pF
- Clamping Voltage @ 8/20µs Max: 1500V
- External Depth: 8.1mm
- External Length / Height: 31mm
- Lead Diameter: 1mm
- Lead Length: 10mm
- Lead Spacing: 12.7mm
- Operating Temperature Range: -40°C to +85°C
- Peak Pulse Current IPP @ 8/20µs: 20000A
- Suppressor Type: Varistor
- Transient Energy: 940J
- Varistor Voltage: 910V
- Varistor Voltage @ 1mA: 819V
- Varistor Voltage @ 1mA Max: 1001V
