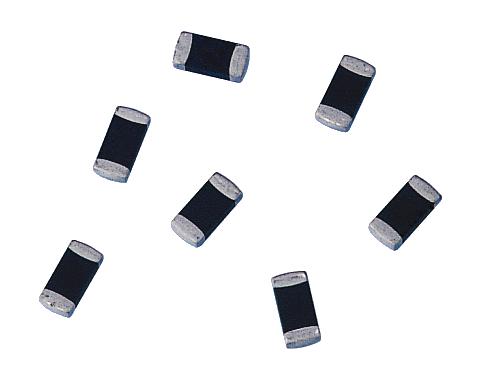

B72520T0400K062 Varistor, 1206, 56VDC EPCOS

EPCOSUGS :B72520T0400K062 Code de commande:8832650

Prix:
Prix ​​promotionnel€0,83

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2317 unité)

Documents et téléchargements

description

EPCOS - B72520T0400K062 - TVS Varistor, 40 V, 56 V, 110 V, 1206 [3216 Metric], Multilayer Varistor (MLV)

  • Voltage Rating VAC: 40V
  • Voltage Rating V DC: 56V
  • Product Range: -
  • Clamping Voltage Vc Max: 110V
  • Varistor Case Style: 1206 [3216 Metric]
  • Varistor Type: Multilayer Varistor (MLV)
  • Peak Surge Current @ 8/20µs: 100A
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 125°C
  • Peak Energy (10/1000uS): 500mJ
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • Capacitance: 250pF
  • Clamping Current Max: 1A
  • Clamping Voltage: 110V
  • Clamping Voltage @ 8/20µs Max: 110V
  • Operating Temperature Range: -55°C to +125°C
  • Peak Pulse Current IPP @ 8/20µs: 100A
  • Power Dissipation Ptot Max: 0.008W
  • Suppressor Type: Varistor
  • Surge Current: 100A
  • Transient Energy: 0.5J
  • Varistor Voltage: 68V
  • Varistor Voltage @ 1mA: 61.2V
  • Varistor Voltage @ 1mA Max: 74.8V
  • Varistor Voltage Tolerance +: 10%
  • Varistor Voltage Tolerance -: 10%
