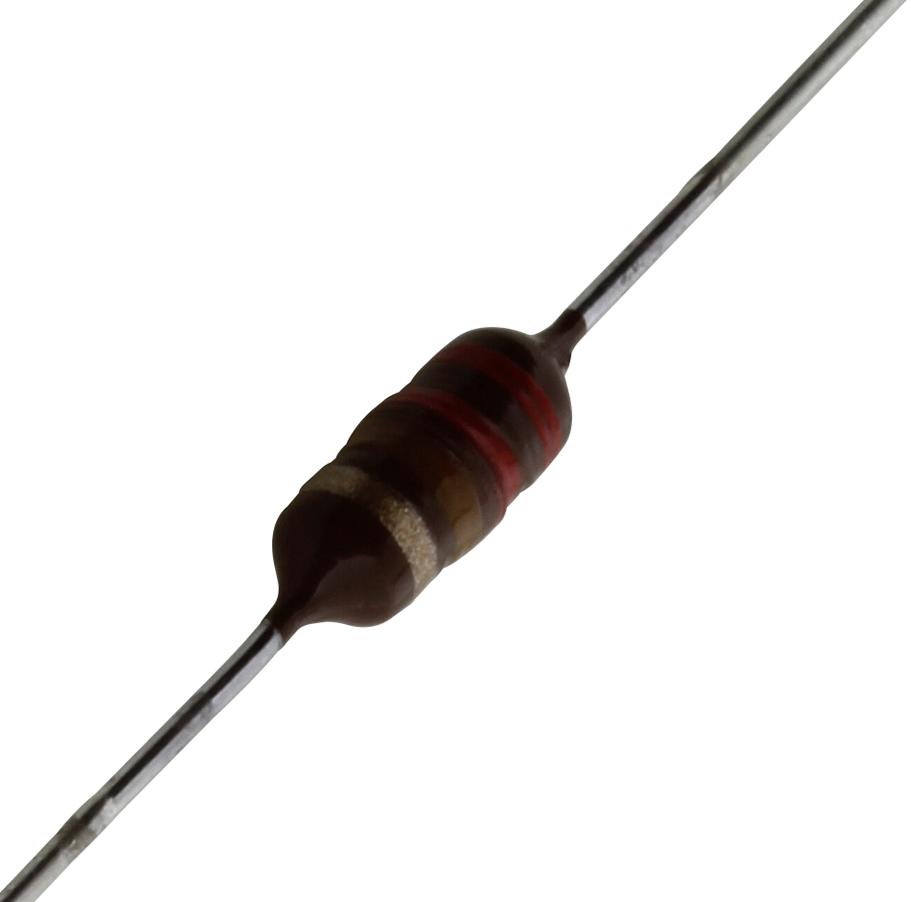

B78108S1225J000 Inductor, 2200UH, Axial EPCOS

EPCOSUGS :B78108S1225J000 Code de commande:608622

Prix:
Prix ​​promotionnel€0,44

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (4990 unité)

Documents et téléchargements

description

EPCOS - B78108S1225J000 - RF Choke, B78108S BC, 2.2 mH, 80 mA, 34.7 ohm, ± 5%, 1.1 MHz

  • Product Range: B78108S BC Series
  • Inductance: 2.2mH
  • DC Current Rating: 80mA
  • DC Resistance Max: 34.7ohm
  • Inductance Tolerance: ± 5%
  • Self Resonant Frequency Min: 1.1MHz
  • SVHC: Lead (27-Jun-2018)
  • Body Diameter: 4mm
  • Core Material: Ferrite
  • Current Rating: 80mA
  • External Length / Height: 9.2mm
  • Inductance Measurement Frequency: 0.1MHz
  • Inductor Case Style: Axial Leaded
  • Inductor Type: High Frequency / RF
  • Lead Diameter: 0.63mm
  • Lead Length: 25mm
  • No. of Pins: 2Pins
  • Q Factor: 40
  • Q Test Frequency: 252kHz
  • Tolerance +: 5%
  • Tolerance -: 5%
