B82144A2105J000 Inductor, 1mH, 5%, 200mA, 1.2Mhz EPCOS

EPCOSUGS :B82144A2105J000 Code de commande:517896

Prix:
Prix ​​promotionnel€0,66

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (3373 unité)

Documents et téléchargements

description

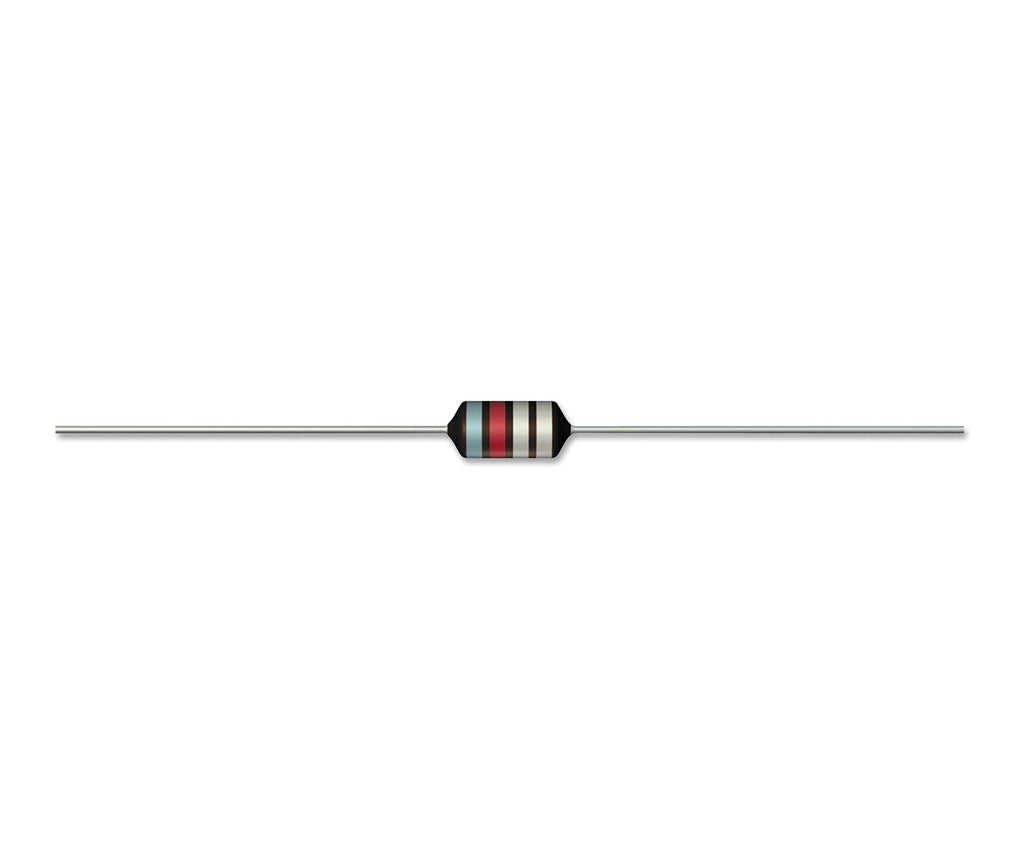

EPCOS - B82144A2105J000 - RF Choke, B82144A LBC, 1 mH, 200 mA, 3.8 ohm, ± 5%, 1.2 MHz

  • Product Range: B82144A LBC Series
  • Inductance: 1mH
  • DC Current Rating: 200mA
  • DC Resistance Max: 3.8ohm
  • Inductance Tolerance: ± 5%
  • Self Resonant Frequency Min: 1.2MHz
  • SVHC: Lead (27-Jun-2018)
  • Body Diameter: 5.2mm
  • Climatic Category: 55/125/56
  • Core Material: Ferrite
  • Current Rating: 200mA
  • External Length / Height: 14.8mm
  • Inductance Measurement Frequency: 0.1MHz
  • Inductor Case Style: Axial Leaded
  • Inductor Type: High Frequency / RF
  • Lead Diameter: 0.63mm
  • No. of Pins: 2Pins
  • Q Factor: 60
  • Q Test Frequency: 252kHz
  • Tolerance +: 5%
  • Tolerance -: 5%
