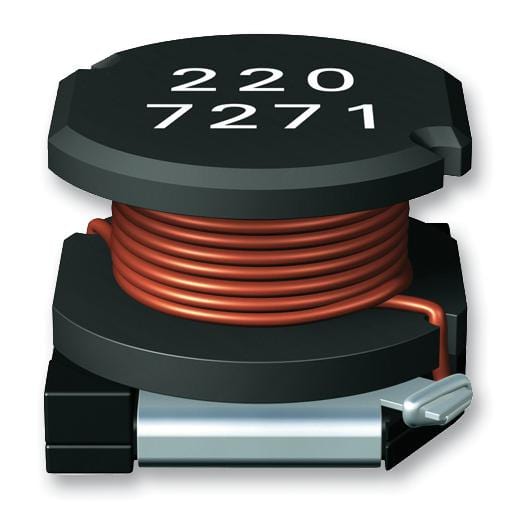

EPCOS - B82473M1683K000 - Wirewound Inductor, 68 µH, 0.28 ohm, 850 mA, 8.3mm x 7.3mm x 5.5mm, B82473M1
- Inductance: 68µH
- RMS Current (Irms): 850mA
- Inductor Construction: Wirewound
- Saturation Current (Isat): 900mA
- Product Range: B82473M1 Series
- Power Inductor Case: 8.3mm x 7.3mm x 5.5mm
- DC Resistance Max: 0.28ohm
- Inductance Tolerance: ± 10%
- SVHC: No SVHC (27-Jun-2018)
