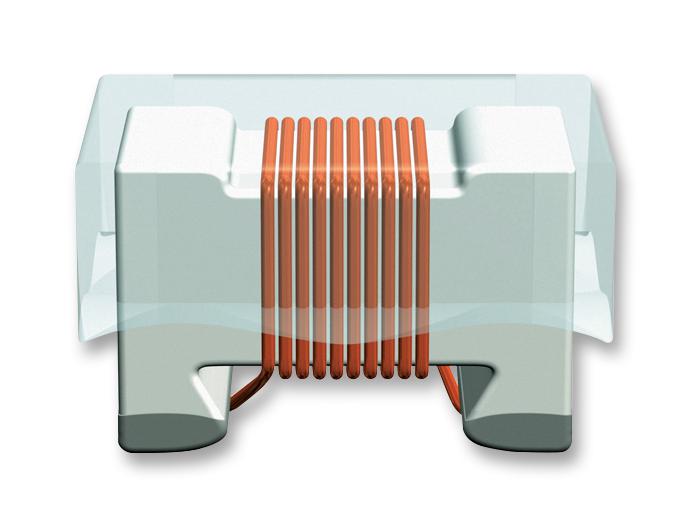

EPCOS - B82498F3220J000 - Wirewound Inductor, 22 nH, 0.08 ohm, 2.5 GHz, 700 mA, 0805 [2012 Metric], B82498F
- Inductance: 22nH
- Product Range: B82498F Series
- DC Current Rating: 700mA
- High Frequency Inductor Case: 0805 [2012 Metric]
- Inductor Construction: Wirewound
- DC Resistance Max: 0.08ohm
- Inductance Tolerance: ± 5%
- Self Resonant Frequency Min: 2.5GHz
- SVHC: No SVHC (27-Jun-2018)
- Core Material: Ceramic
- Inductor Case Style: 0805 [2012 Metric]
- Q Factor: 60
- Q Test Frequency: 500MHz
- Reel Quantity: 3000
