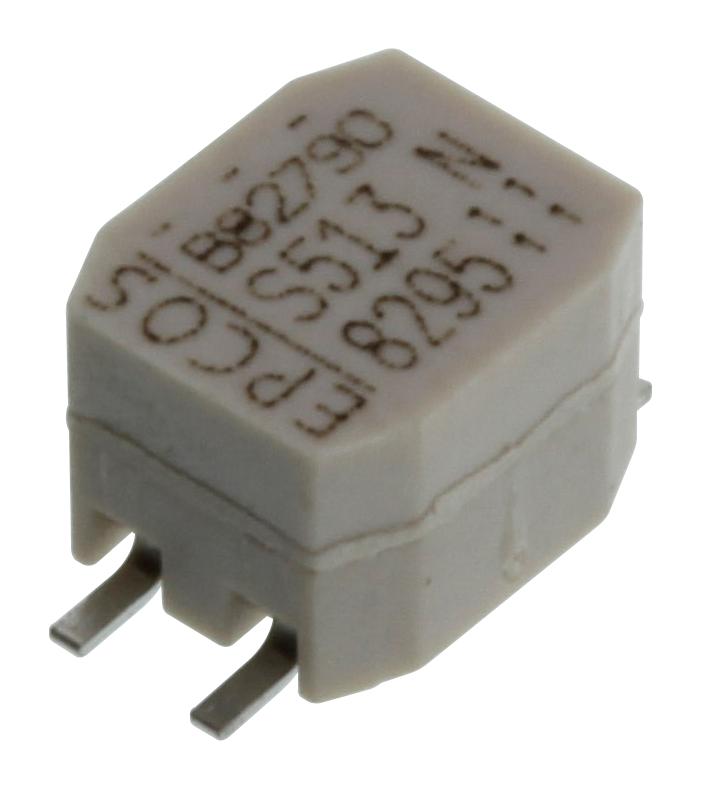

B82790S0513N201 Choke, Double, 0.051MH EPCOS

EPCOSUGS :B82790S0513N201 Code de commande:9752250

Prix:
Prix ​​promotionnel€3,04

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (26900 unité)

Documents et téléchargements

description

EPCOS - B82790S0513N201 - Choke, Common Mode, 51 µH, B82790S0 Series, 500 mA, 7.1mm x 6mm x 4.9mm

  • Rated Current: 500mA
  • Inductance: 51µH
  • Product Range: B82790S0 Series
  • Impedance: -
  • Common Mode Filter Case: 7.1mm x 6mm x 4.9mm
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • Climatic Category: 40/125/56
  • Core Material: Ferrite
  • DC Current Max: 500mA
  • DC Current Rating: 500mA
  • DC Resistance Max: 0.16ohm
  • Flammability Rating: UL94V-0
  • Inductance Min: 1.5µH
  • Inductance Tolerance: ± 30%
  • Inductor Case Style: SMD
  • Inductor Type: Common / Asymmetrical
  • No. of Pins: 4Pins
  • Voltage Rating: 80V
  • Voltage Rating V DC: 80V
  • Voltage Rating VAC: 42V
