description

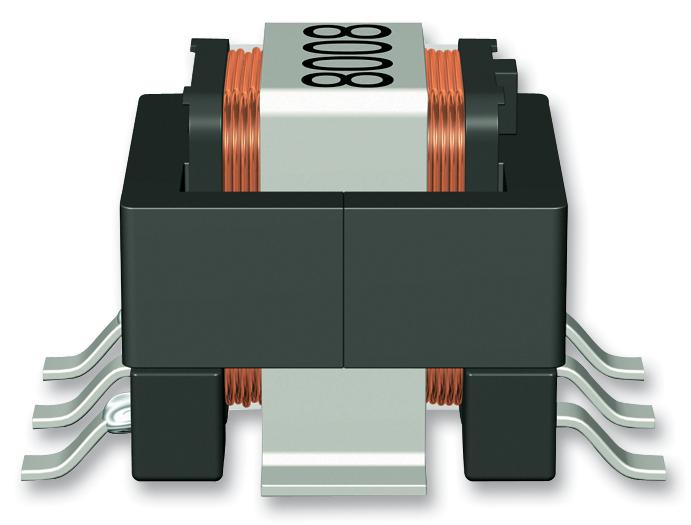

EPCOS - B82801B0724A060 - Current Sensing Transformer, 1:60, 720 µH, 20 A, 30 Vµs, 50kHz to 1MHz, 1.98 ohm
- Turns Ratio: 1
- DC Resistance: 1.98ohm
- Inductance: 720µH
- ET Constant: -
- Primary Current: 20A
- Transformer Mounting: Surface Mount
- Product Range: -
- SVHC: No SVHC (07-Jul-2017)
- Depth Max: 5.08mm
- External Length / Height: 8.38mm
- External Width: 7.11mm
- Frequency Max: 1MHz
- Frequency Min: 50kHz
- Input Current: 20A
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Secondary Burden Resistance: 1.98ohm
- Test Voltage: 500V
- Transformer Type: Current
- Type: E 5
- Weight: 0.35g
- Winding Resistance Min: 0.8mohm
