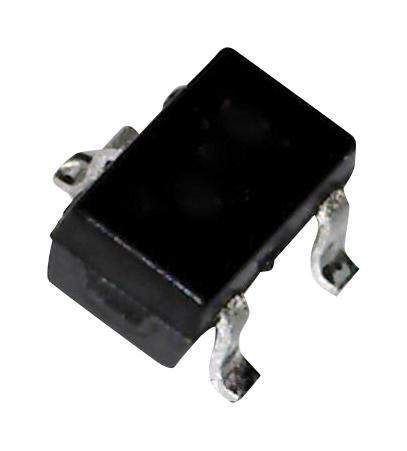

ONSEMI - BAS16WT1G - Small Signal Diode, Single, 75 V, 200 mA, 1.25 V, 6 ns, 500 mA
- Diode Configuration: Single
- Repetitive Reverse Voltage Vrrm Max: 75V
- Forward Current If(AV): 200mA
- Forward Voltage VF Max: 1.25V
- Reverse Recovery Time trr Max: 6ns
- Forward Surge Current Ifsm Max: 500mA
- Operating Temperature Max: 150°C
- Diode Case Style: SC-70
- No. of Pins: 3Pins
- Product Range: BAS16 Series
- Automotive Qualification Standard: AEC-Q101
- SVHC: No SVHC (27-Jun-2018)
- Breakdown Voltage Max: 75V
- Diode Type: Switching
- Junction Temperature Tj Max: 150°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
- Reverse Recovery Time trr Typ: 6ns
- Termination Type: Surface Mount Device
