BC33725TA Transistor, NPN, 45V, TO-92 ONSEMI

ONSEMIUGS :BC33725TA Code de commande:1228215

Prix:
Prix ​​promotionnel€0,32

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (41758 unité)

Documents et téléchargements

description

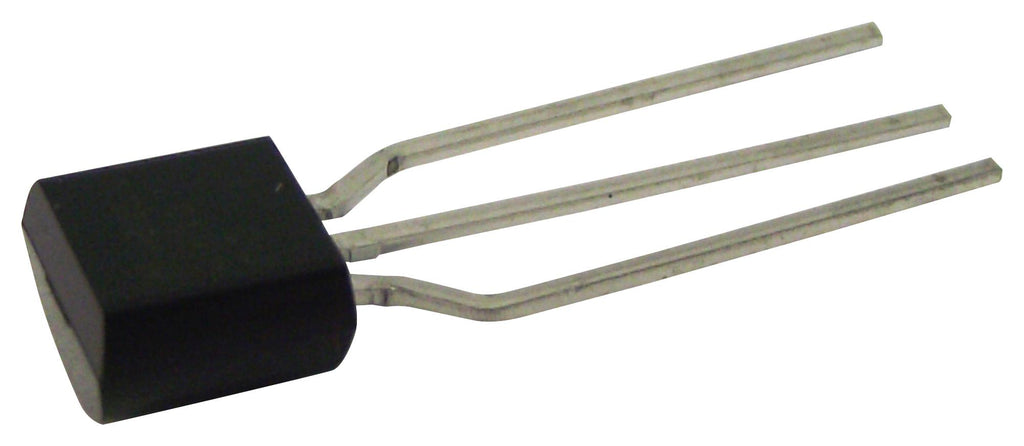

ONSEMI - BC33725TA - Bipolar (BJT) Single Transistor, NPN, 45 V, 800 mA, 625 mW, TO-92, Through Hole

  • Transistor Polarity: NPN
  • Collector Emitter Voltage V(br)ceo: 45V
  • Transition Frequency ft: 100MHz
  • Power Dissipation Pd: 625mW
  • DC Collector Current: 800mA
  • DC Current Gain hFE: 400hFE
  • Transistor Case Style: TO-92
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (27-Jun-2018)
  • Collector Emitter Saturation Voltage Vce(on): 700mV
  • Continuous Collector Current Ic Max: 800mA
  • Current Ic Continuous a Max: 500mA
  • Current Ic hFE: 100mA
  • Gain Bandwidth ft Typ: 100MHz
  • Hfe Min: 100
  • Power Dissipation Ptot Max: 625mW
  • Termination Type: Through Hole
  • Voltage Vcbo: 50V
