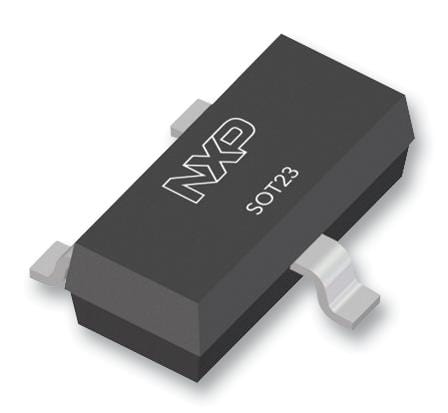

NEXPERIA - BCW72,215 - Bipolar (BJT) Single Transistor, General Purpose, NPN, 45 V, 100 mA, 250 mW, SOT-23, Surface Mount
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 45V
- Transition Frequency ft: 100MHz
- Power Dissipation Pd: 250mW
- DC Collector Current: 100mA
- DC Current Gain hFE: 150hFE
- Transistor Case Style: SOT-23
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Collector Emitter Saturation Voltage Vce(on): 250mV
- Continuous Collector Current Ic Max: 100mA
- Current Ic Continuous a Max: 100mA
- Current Ic hFE: 2mA
- Device Marking: BCW72
- Gain Bandwidth ft Min: 100MHz
- Gain Bandwidth ft Typ: 300MHz
- Hfe Min: 200
- No. of Transistors: 1
- Noise Factor Max: 10dB
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Power Dissipation Ptot Max: 250mW
- SMD Marking: K2
- Termination Type: Surface Mount Device
- Voltage Vcbo: 50V
