BD135 Transistor, NPN, TO-126 STMICROELECTRONICS

STMICROELECTRONICSUGS :BD135 Code de commande:9801529

Prix:
Prix ​​promotionnel€1,00

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (26501 unité)

Documents et téléchargements

description

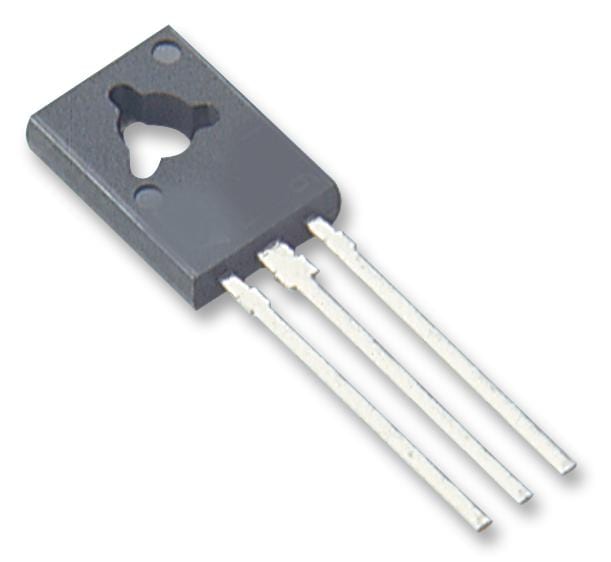

STMICROELECTRONICS - BD135 - Bipolar (BJT) Single Transistor, NPN, 45 V, 1.5 A, 1.25 W, TO-126, Through Hole

  • Transistor Polarity: NPN
  • Collector Emitter Voltage V(br)ceo: 45V
  • Transition Frequency ft: -
  • Power Dissipation Pd: 1.25W
  • DC Collector Current: 1.5A
  • DC Current Gain hFE: 250hFE
  • Transistor Case Style: TO-126
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (17-Dec-2015)
  • Collector Emitter Saturation Voltage Vce(on): 500mV
  • Continuous Collector Current Ic Max: 1.5A
  • Current Ic Continuous a Max: 1.5A
  • Current Ic hFE: 150mA
  • Full Power Rating Temperature: 25°C
  • Hfe Min: 40
  • No. of Transistors: 1
  • Power Dissipation Ptot Max: 12.5W
  • Voltage Vcbo: 45V
