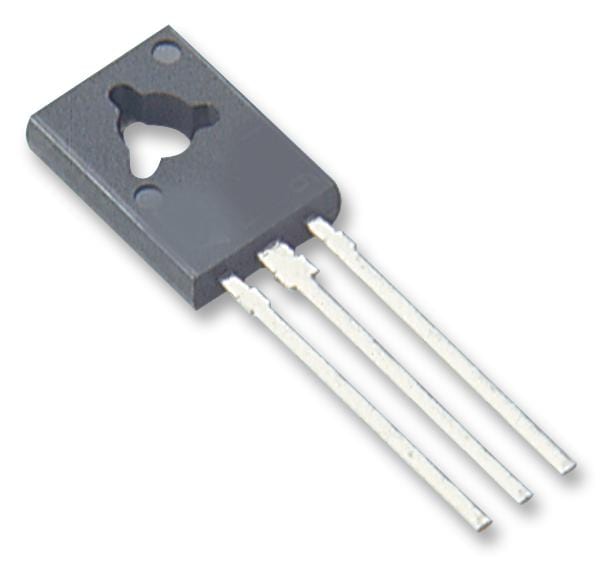

BD139-10 Transistor, NPN, TO-126 multicomp Pro

MULTICOMP PROUGS :BD139-10 Code de commande:1825611

Prix:
Prix ​​promotionnel€0,87

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (4263 unité)

Documents et téléchargements

description

MULTICOMP PRO - BD139-10 - Bipolar (BJT) Single Transistor, NPN, 80 V, 1.5 A, 12.5 W, TO-126, Through Hole

  • Transistor Polarity: NPN
  • Collector Emitter Voltage V(br)ceo: 80V
  • Transition Frequency ft: -
  • Power Dissipation Pd: 12.5W
  • DC Collector Current: 1.5A
  • DC Current Gain hFE: 63hFE
  • Transistor Case Style: TO-126
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: -
  • MSL: -
  • SVHC: No SVHC (15-Jan-2019)
  • Av Current Ic: 1.5A
  • Collector Emitter Saturation Voltage Vce(on): 500mV
  • Continuous Collector Current Ic Max: 1.5A
  • Current Ic Continuous a Max: 1.5A
  • Current Ic hFE: 150mA
  • Full Power Rating Temperature: 25°C
  • Hfe Min: 63
  • No. of Transistors: 1
  • Operating Temperature Min: -55°C
  • Power Dissipation Ptot Max: 12.5W
  • Termination Type: Through Hole
  • Voltage Vcbo: 100V
