BFC236855223 Cap, 0.022µF, 400V, 10%, Pet Vishay

VISHAYUGS :BFC236855223 Code de commande:1215499

Prix:
Prix ​​promotionnel€1,07

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2457 unité)

Documents et téléchargements

description

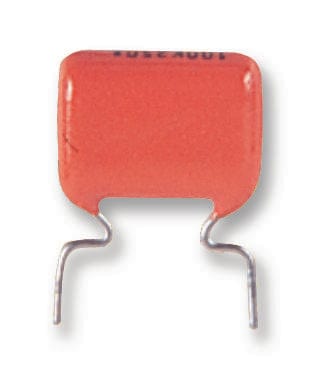

VISHAY - BFC236855223 - General Purpose Film Capacitor, Metallized PET, Radial Box - 2 Pin, 0.022 µF, ± 10%, 220 V, 400 V

  • Capacitance: 22000pF
  • Voltage Rating: 400V
  • Capacitor Dielectric Type: PET (Polyester)
  • Capacitance Tolerance: ± 10%
  • Product Range: MKT368 Series
  • Capacitor Case Style: -
  • Capacitor Terminals: Radial Leaded
  • Lead Spacing: 10mm
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Capacitance Tolerance ±: ± 10%
  • Capacitor Mounting: Through Hole
  • Climatic Category: 40/100/56
  • External Depth: 4.2mm
  • External Length / Height: 12.9mm
  • External Width: 12.5mm
  • Height: 12.9mm
  • Insulation Resistance: 30000Mohm
  • Lead Diameter: 0.6mm
  • Lead Length: 5mm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -40°C to +85°C
  • Power Factor: 0.01
  • Tolerance +: 10%
  • Tolerance -: 10%
  • Voltage Rating V DC: 400V
  • Voltage Rating VAC: 220V
