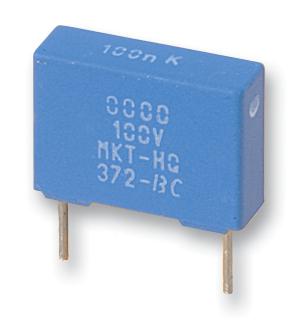

VISHAY - BFC237261473 - General Purpose Film Capacitor, Metallized PET, Radial Box - 2 Pin, 0.047 µF, ± 10%, 250 V, 630 V
- Capacitance: 47000pF
- Voltage Rating: 630V
- Capacitor Dielectric Type: PET (Polyester)
- Capacitance Tolerance: ± 10%
- Product Range: MKT372 Series
- Capacitor Case Style: -
- Capacitor Terminals: Radial Leaded
- Lead Spacing: 10mm
- Operating Temperature Min: -55°C
- Operating Temperature Max: 105°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Approval Category: IEC 60384-3
- Capacitance Tolerance ±: ± 10%
- Capacitor Mounting: Through Hole
- Climatic Category: 55/105/56
- External Depth: 12mm
- External Length / Height: 12.5mm
- External Width: 6mm
- Flammability Rating: UL94V-0
- Height: 12.5mm
- Insulation Resistance: 30000Mohm
- Lead Diameter: 0.6mm
- Lead Length: 4mm
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +105°C
- Tolerance +: 10%
- Tolerance -: 10%
- Voltage Rating V DC: 630V
- Voltage Rating VAC: 250V
