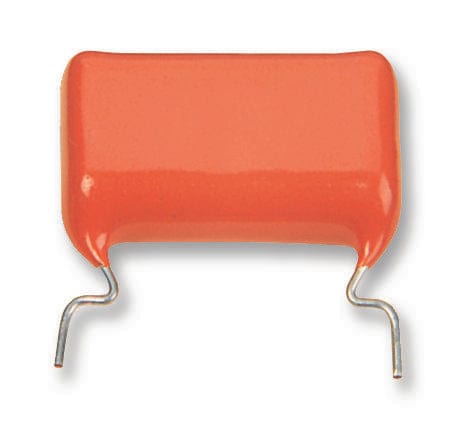

VISHAY - BFC237520823 - Power Film Capacitor, Metallized PP, Radial Box - 2 Pin, 0.082 µF, ± 5%, High Current, Pulse
- Capacitance: 82000pF
- Voltage Rating: 1kV
- Capacitor Dielectric Type: PP (Polypropylene)
- Capacitance Tolerance: ± 5%
- Product Range: KP/MKP 375 Series
- Capacitor Case Style: -
- Capacitor Terminals: Radial Leaded
- Lead Spacing: 27.5mm
- Operating Temperature Min: -55°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- Capacitance Tolerance ±: ± 5%
- Capacitor Mounting: Through Hole
- Climatic Category: 55/100/56
- External Depth: 9.5mm
- External Length / Height: 22.5mm
- External Width: 30mm
- Height: 22.5mm
- Lead Diameter: 0.8mm
- No. of Pins: 2Pins
- Operating Temperature Range: -55°C to +85°C
- Tolerance +: 5%
- Tolerance -: 5%
- Voltage Rating V DC: 1kV
- Voltage Rating VAC: 400V
