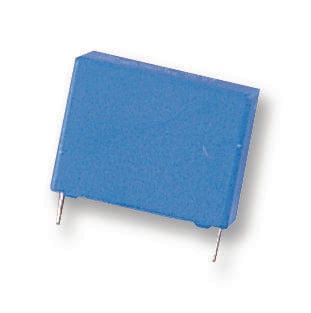

BFC237872224 Cap, 0.22µF, 1 kV, 5%, PP, Through Hole Vishay

VISHAYUGS :BFC237872224 Code de commande:1215557

Prix:
Prix ​​promotionnel€9,04

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (63 unité)

Documenten en downloads

description

VISHAY - BFC237872224 - Power Film Capacitor, Metallized PP, Radial Box - 2 Pin, 0.22 µF, ± 5%, High Current, Pulse

  • Capacitance: 0.22µF
  • Voltage Rating: 1kV
  • Capacitor Dielectric Type: PP (Polypropylene)
  • Capacitance Tolerance: ± 5%
  • Product Range: MKP378 Series
  • Capacitor Case Style: -
  • Capacitor Terminals: Radial Leaded
  • Lead Spacing: 27.5mm
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Capacitance Tolerance ±: ± 5%
  • Capacitor Mounting: Through Hole
  • Climatic Category: 55/085/56
  • External Depth: 21mm
  • External Length / Height: 31mm
  • External Width: 31mm
  • Height: 31mm
  • Insulation Resistance: 100000Mohm
  • Lead Diameter: 0.8mm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -55°C to +85°C
  • Power Factor: 0.02
  • Power Factor Frequency: 10kHz
  • Power Factor Temperature: 20°C
  • Pulse Rating: 300V/µs
  • Tolerance +: 5%
  • Tolerance -: 5%
  • Voltage Rating V DC: 1kV
  • Voltage Rating VAC: 400V
