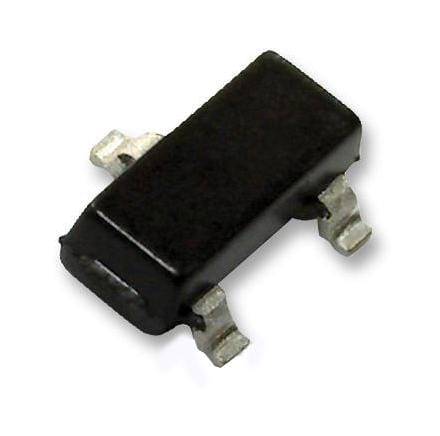

NEXPERIA - BFS20,215 - Bipolar - RF Transistor, NPN, 20 V, 450 MHz, 250 mW, 25 mA, SOT-23
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 20V
- Transition Frequency ft: 450MHz
- Power Dissipation Pd: 250mW
- DC Collector Current: 25mA
- DC Current Gain hFE: 85hFE
- RF Transistor Case: SOT-23
- No. of Pins: 3Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Continuous Collector Current Ic: 25mA
- Continuous Collector Current Ic Max: 25mA
- Current Ic Continuous a Max: 25mA
- Current Ic hFE: 7mA
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Typ: 450MHz
- Hfe Min: 40
- Operating Temperature Min: -65°C
- Operating Temperature Range: -65°C to +150°C
- Power Dissipation Ptot Max: 250mW
- SMD Marking: G1
- Termination Type: Surface Mount Device
- Transistor Case Style: SOT-23
- Voltage Vcbo: 30V
