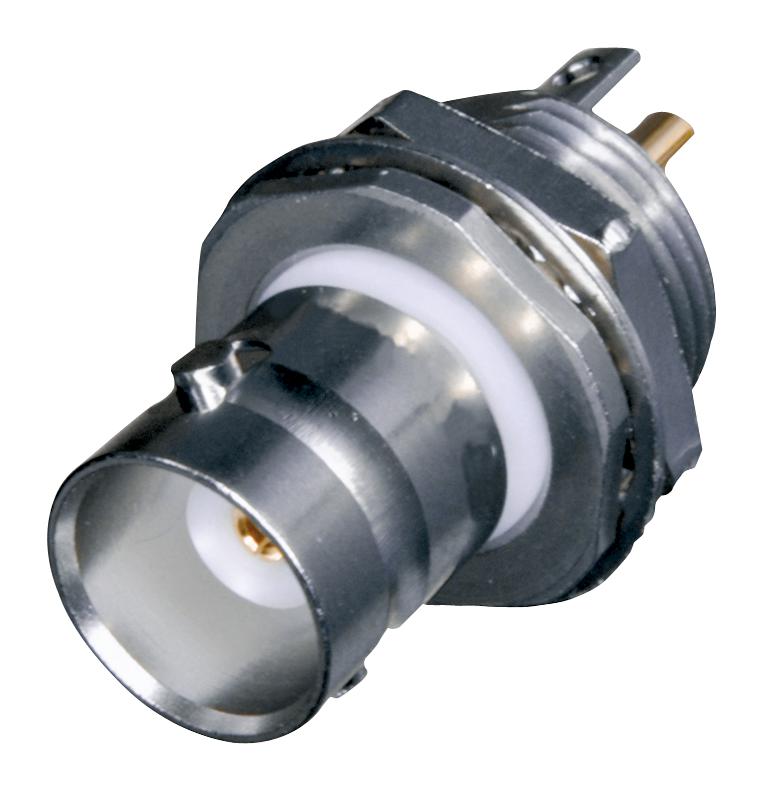

TROMPETER - CINCH CONNECTIVITY - BJ27 - RF / Coaxial Connector, Insulated, Front Mount, BNC Coaxial, Straight Bulkhead Jack, Solder, 50 ohm
- Connector Type: BNC Coaxial
- Connector Body Style: Straight Bulkhead Jack
- Coaxial Termination: Solder
- Impedance: 50ohm
- Coaxial Cable Types: -
- Contact Material: Beryllium Copper
- Contact Plating: Gold Plated Contacts
- Frequency Max: 3GHz
- Connector Mounting: Panel Mount
- Product Range: -
- SVHC: Lead (15-Jan-2019)
- Connector Mounting Orientation: Panel
- Insulation Resistance: 5000Mohm-m
- Operating Temperature Max: 165°C
- Operating Temperature Min: -65°C
- Termination Method: Solder
- Voltage Rating V DC: 400V
