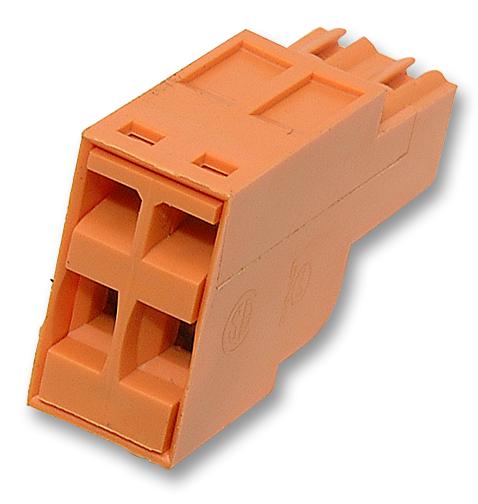

BLZF 3.5/6 Terminal Block, Pluggable, 6Pos, 14AWG Weidmuller

WEIDMULLERUGS :BLZF 3.5/6 Code de commande:1179255

Prix:
Prix ​​promotionnel€9,52

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (111 unité)

Documents et téléchargements

description

WEIDMULLER - BLZF 3.5/6 - Pluggable Terminal Block, 3.5 mm, 6 Ways, 22AWG to 14AWG, 1.5 mm², Tension Clamp, 10 A

  • Pitch Spacing: 3.5mm
  • No. of Positions: 6Ways
  • Wire Size (AWG): 22AWG to 14AWG
  • Conductor Area CSA: 1.5mm²
  • Wire Connection Method: Tension Clamp
  • Rated Current: 10A
  • Rated Voltage: 300V
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2018)
  • Colour: Orange
  • Connector Mounting: Cable Mount
  • Connector Type: Terminal Block, Pluggable
  • Contact Material: Copper
  • Contact Plating: Tin Plated Contacts
  • Material: Steel, Zinc Plated
  • Operating Temperature Max: 100°C
  • Operating Temperature Min: -20°C
  • Voltage Rating VAC: 250V
  • Wire Area Size Max: 1.5mm²
  • Wire Area Size Min: 0.5mm²
  • Wire Size AWG Max: 14AWG
  • Wire Size AWG Min: 22AWG
