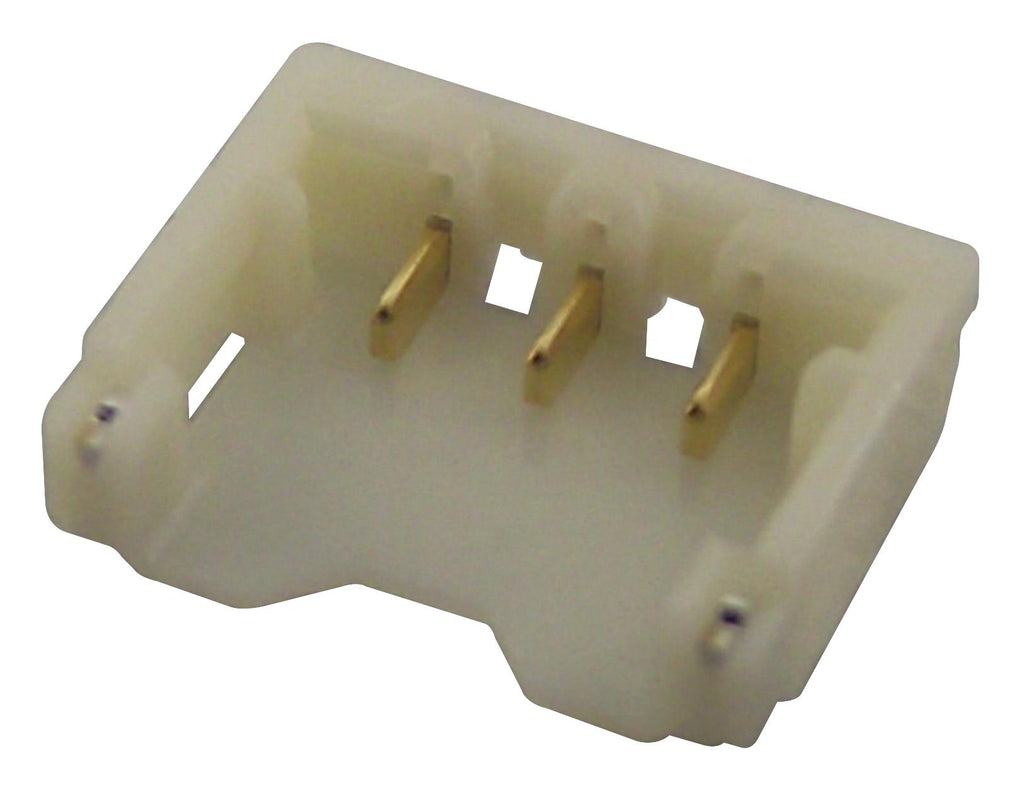

BM03B-ACHSS-GaN-TF (LF)(Sn) Header, Top Entry, 3WAY JST (Japan Solderless Terminals)

JST (JAPAN SOLDERLESS TERMINALS)UGS :BM03B-ACHSS-GAN-TF (LF)(SN) Code de commande:1684117

Prix:
Prix ​​promotionnel€1,24

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (8820 unité)

Documents et téléchargements

description

JST (JAPAN SOLDERLESS TERMINALS) - BM03B-ACHSS-GAN-TF (LF)(SN) - Pin Header, Top Entry, Wire-to-Board, 1.2 mm, 1 Rows, 3 Contacts, Surface Mount Right Angle, ACH

  • Pitch Spacing: 1.2mm
  • No. of Contacts: 3Contacts
  • Gender: Header
  • Product Range: ACH Series
  • Contact Termination Type: Crimp
  • No. of Rows: 1Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Copper
  • SVHC: No SVHC (17-Dec-2015)
  • Colour: White
  • Contact Resistance: 10mohm
  • Current Rating: 2A
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 100Mohm
  • Material: Heat Resisting Resin
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -20°C
  • Voltage Rating VAC: 50V
  • Withstand Voltage: 500V
