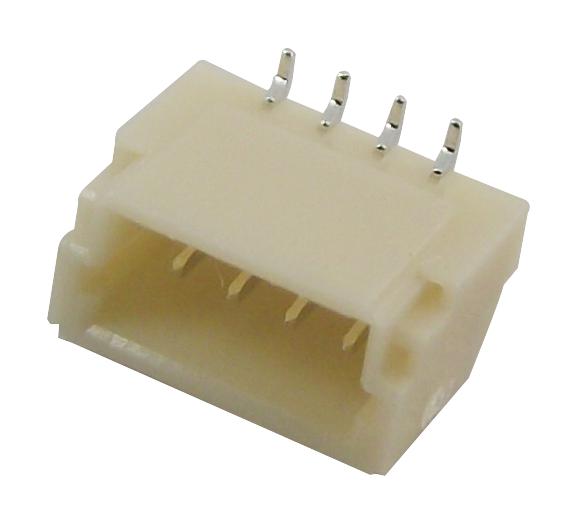

BM04B-SRSS-TB(LF)(Sn) Header, Top Entry, 4WAY JST (Japan Solderless Terminals)

JST (JAPAN SOLDERLESS TERMINALS)UGS :BM04B-SRSS-TB(LF)(SN) Code de commande:1679129

Prix:
Prix ​​promotionnel€1,09

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (178010 unité)

Documents et téléchargements

description

JST (JAPAN SOLDERLESS TERMINALS) - BM04B-SRSS-TB(LF)(SN) - Pin Header, Top Entry, Wire-to-Board, 1 mm, 1 Rows, 4 Contacts, Surface Mount, SR

  • Pitch Spacing: 1mm
  • No. of Contacts: 4Contacts
  • Gender: Header
  • Product Range: SH Series
  • Contact Termination Type: Surface Mount
  • No. of Rows: 1Rows
  • Contact Plating: Tin Plated Contacts
  • Contact Material: Copper Alloy
  • SVHC: No SVHC (07-Jul-2017)
  • Colour: Natural
  • Contact Resistance: 20mohm
  • Current Rating: 1A
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 100Mohm
  • Material: Polyamide
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: -25°C
  • Voltage Rating VAC: 50V
  • Withstand Voltage: 500V
