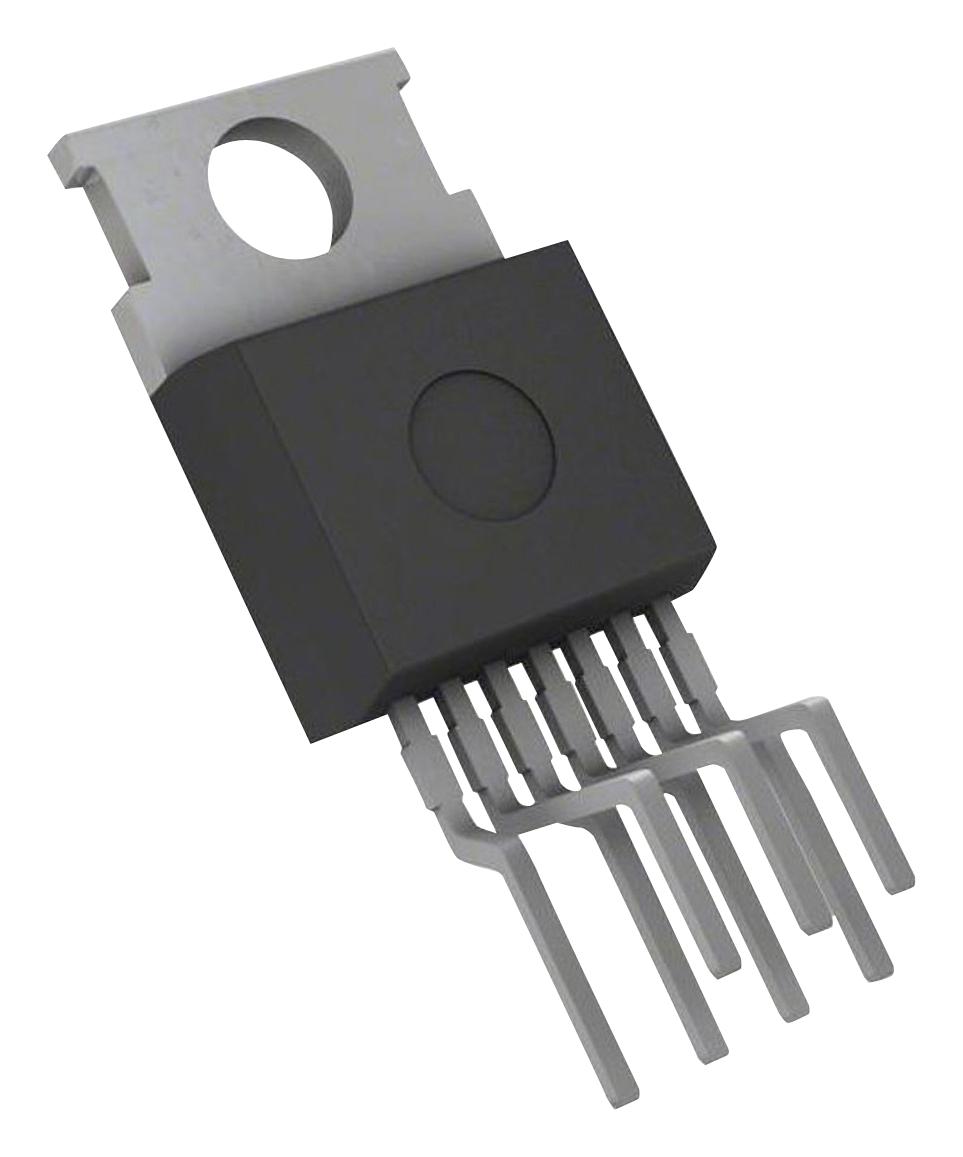

BTS500551TMBAKSA1 Ic, Smart High Side Pwr SW, TO220-7 INFINEON

INFINEONUGS :BTS500551TMBAKSA1 Code de commande:2215520

Prix:
Prix ​​promotionnel€10,56

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1244 unité)

Documents et téléchargements

description

INFINEON - BTS500551TMBAKSA1 - Smart Power Switch, SIPMOS Technology, TO-220-7

  • Power Load Switch Type: High Side
  • Input Voltage: 34V
  • Current Limit: 130A
  • On State Resistance: 0.006ohm
  • Distribution Switch Case Style: TO-220
  • No. of Pins: 7Pins
  • Thermal Protection: Yes
  • On / Enable Input Polarity: Active Low
  • No. of Outputs: 1Outputs
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 150°C
  • Product Range: -
  • Automotive Qualification Standard: AEC-Q100
  • RoHS Phthalates Compliant: Yes
  • MSL: -
  • SVHC: No SVHC (27-Jun-2018)
  • Device Type: High Side
  • Driver Case Style: TO-220
  • Input Delay: 400µs
  • Module Configuration: N Channel
  • Operating Temperature Range: -40°C to +150°C
  • Output Delay: 110µs
  • Output Resistance: 0.0044ohm
  • Peak Output Current: 130A
  • Supply Voltage Max: 34V
  • Supply Voltage Min: 5V
  • Supply Voltage Range: 5V to 34V
