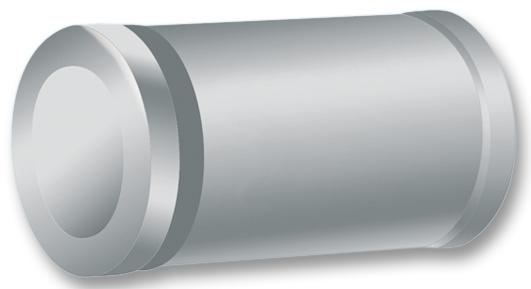

VISHAY - BYM13-40-E3/96 - Schottky Rectifier, 40 V, 1 A, Single, DO-213AB, 2 Pins, 500 mV
- Repetitive Reverse Voltage Vrrm Max: 40V
- Forward Current If(AV): 1A
- Diode Configuration: Single
- Diode Case Style: DO-213AB
- No. of Pins: 2Pins
- Forward Voltage VF Max: 500mV
- Forward Surge Current Ifsm Max: 30A
- Operating Temperature Max: 125°C
- Product Range: BYM13 Series
- Automotive Qualification Standard: -
- SVHC: Lead (27-Jun-2018)
- Current Ifsm: 30A
- Diode Type: Schottky
- External Depth: 3mm
- External Length / Height: 6mm
- External Width: 3mm
- Forward Voltage: 500mV
- Junction Temperature Tj Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- RMS Input Voltage: 28V
- Semiconductor Technology: Si
- Termination Type: Surface Mount Device
