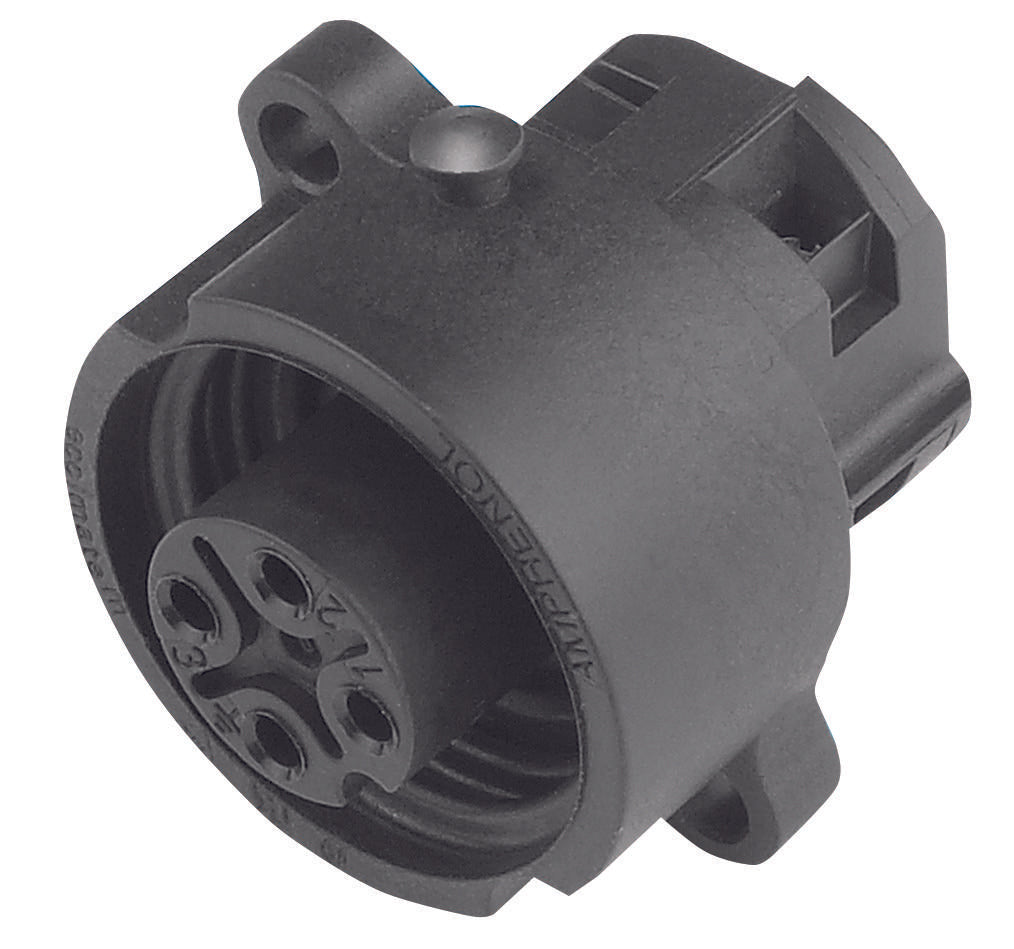

AMPHENOL SINE/TUCHEL - C016 30G006 100 12.. - Circular Connector, Ecomate C016 Series, Flange Mount Receptacle, 6 Contacts, Solder Socket
- Product Range: Ecomate C016 Series
- Circular Connector Shell Style: Flange Mount Receptacle
- No. of Contacts: 6Contacts
- Circular Contact Type: Solder Socket
- Coupling Style: -
- Connector Body Material: Nylon (Polyamide) Body
- Connector Body Plating: -
- Contact Material: -
- Contact Plating: Silver
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CSA, VDE
- Colour: Black
- Connector Mounting: Panel Mount
- Connector Type: Circular
- Contact Gender: Socket
- Contact Plating: Silver Plated Contacts
- Contact Resistance: 5mohm
- Contact Termination: Solder
- Contact Termination Type: Solder
- Current Rating: 10A
- De-mating Force: 30N
- Degree of Pollution: 3
- Fixing Centres: 31mm
- Flammability Rating: UL94V-0
- Gender: Receptacle
- IP / NEMA Rating: IP67
- Insulation Resistance: 10Mohm
- No. of Mating Cycles: 500
- Operating Temperature Max: +125°C
- Operating Temperature Min: -40°C
- Wire Area Size Max: 0.75mm²
- Withstand Voltage: 4000V
- Working Voltage: 250V
