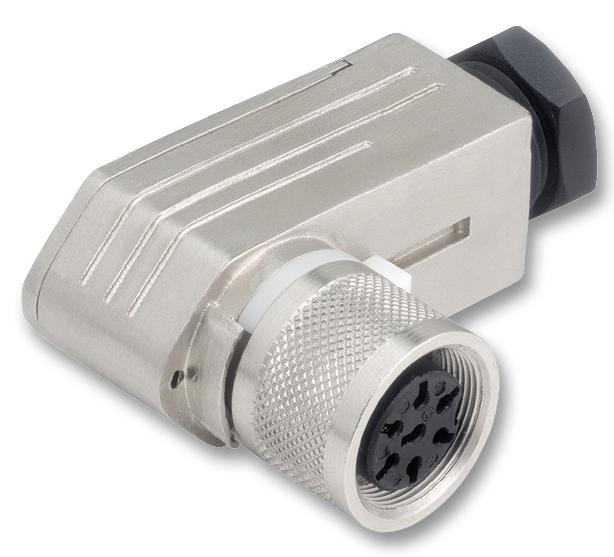

AMPHENOL SINE/TUCHEL - C091 31F006 100 2 - Circular Connector, C091D Series, Cable Mount Receptacle, 6 Contacts, Solder Socket, Metal Body
- Product Range: C091D Series
- Circular Connector Shell Style: Cable Mount Receptacle
- No. of Contacts: 6Contacts
- Circular Contact Type: Solder Socket
- Coupling Style: -
- Connector Body Material: Metal Body
- Connector Body Plating: -
- Contact Material: -
- Contact Plating: Silver
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: UL
- Approval Category: IEC 60664-1, UL 1977
- Body Plating: Nickel
- Cable Diameter Max: 6mm
- Cable Diameter Min: 4mm
- Connector Mounting: Cable Mount
- Connector Type: Circular Industrial
- Contact Gender: Socket
- Contact Plating: Silver Plated Contacts
- Contact Resistance: 5mohm
- Contact Termination: Solder
- Contact Termination Type: Solder
- Current Rating: 5A
- Degree of Pollution: 1
- Flammability Rating: UL94V-0
- Gender: Receptacle
- IP / NEMA Rating: IP67
- Insulation Resistance: 1000Mohm
- No. of Mating Cycles: 500
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Voltage Rating VAC: 300V
- Wire Area Size: 0.5mm²
- Withstand Voltage: 1500V
- Working Voltage: 300V
