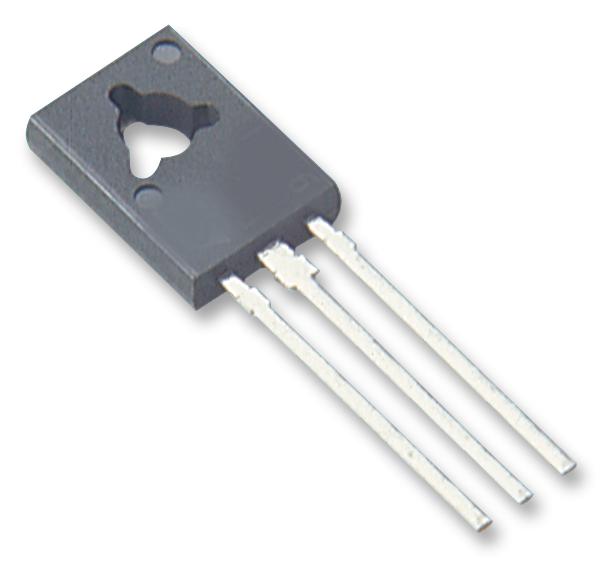

C106D1G Thyristor, 2.5A, 400V, TO-126 LITTELFUSE

LITTELFUSEUGS :C106D1G Code de commande:9556494

Prix:
Prix ​​promotionnel€1,24

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (4182 unité)

Documents et téléchargements

description

LITTELFUSE - C106D1G - Thyristor, 400 V, 200 µA, 2.55 A, 4 A, TO-225AA, 3 Pins

  • Peak Repetitive Off-State Voltage, Vdrm: 400V
  • Gate Trigger Current Max, Igt: 200µA
  • Current It av: 2.55A
  • On State RMS Current IT(rms): 4A
  • Thyristor Case Style: TO-225AA
  • No. of Pins: 3Pins
  • Peak Non Rep Surge Current Itsm 50Hz: 20A
  • Holding Current Max Ih: 3mA
  • Gate Trigger Voltage Max Vgt: 1V
  • Operating Temperature Max: 110°C
  • Product Range: -
  • MSL: -
  • SVHC: No SVHC (12-Jan-2017)
  • Current Itsm: 20A
  • Device Marking: C106D1
  • Operating Temperature Min: -40°C
  • Operating Temperature Range: -40°C to +110°C
  • Repetitive Reverse Voltage Vrrm Max: 400V
  • Termination Type: Through Hole
  • Thyristor Case: TO-225AA
  • Thyristor Type: Thyristor
