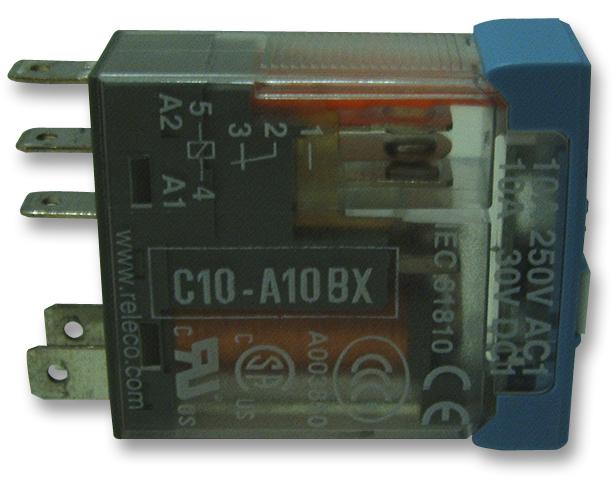

RELECO - C10A10X24D - General Purpose Relay, C10 Series, Power, SPDT, 24 VDC, 10 A
- Contact Configuration: SPDT
- Coil Voltage: 24VDC
- Contact Current: 10A
- Product Range: C10 Series
- Relay Mounting: Socket
- Coil Type: -
- Contact Voltage VAC: 400VAC
- Relay Terminals: Quick Connect
- Contact Voltage VDC: 30VDC
- Contact Material: Silver Nickel
- Coil Resistance: 742ohm
- SVHC: No SVHC (15-Jan-2019)
- Case Material: Plastic
- Coil Current: 32mA
- Coil Voltage VDC Nom: 24V
- Contact Current AC Max: 10A
- Contact Current DC Max: 10A
- Contact Current Max: 10A
- Contact Voltage AC Max: 400V
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Max: 30V
- Contact Voltage DC Nom: 30V
- Dielectric Strength VDC: 1000V
- External Depth: 35.4mm
- External Height: 28.8mm
- External Length / Height: 28.8mm
- External Width: 12.5mm
- Nom Operating Power: 700mW
- Operating Temperature Max: 60°C
- Operating Temperature Min: -20°C
- Operating Time: 10ms
- Relay Type: Power - General Purpose
- Release Time: 5ms
