C1500VQASG Rocker Switch, SPST, Black Arcolectric (Bulgin Limited)

ARCOLECTRIC (BULGIN LIMITED)UGS :C1500VQASG Code de commande:150519

Prix:
Prix ​​promotionnel€3,26

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (325 unité)

Documents et téléchargements

description

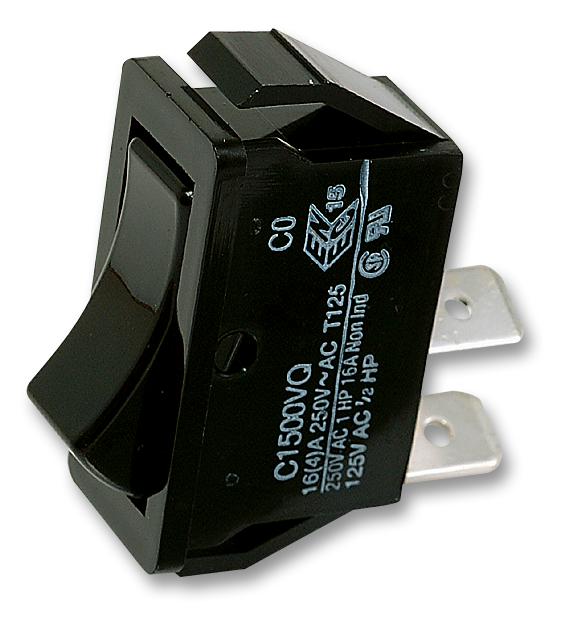

ARCOLECTRIC (BULGIN LIMITED) - C1500VQASG - Rocker Switch, Off-On, SPST, Non Illuminated, Panel Mount, Black, 1500

  • Illumination: Non Illuminated
  • Contact Configuration: SPST
  • Switch Operation: Off-On
  • Actuator / Cap Colour: Black
  • Switch Mounting: Panel
  • Contact Current Max: 20A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: -
  • Product Range: 1500 Series
  • SVHC: No SVHC (27-Jun-2018)
  • Bezel Height: 14mm
  • Bezel Width: 30.2mm
  • Colour: Black
  • Contact Current AC Max: 16A
  • Contact Resistance: 10Mohm
  • Contact Voltage AC Max: 250V
  • External Depth: 16.2mm
  • Insulation Resistance: 20Mohm
  • No. of Electrical Operations: 10000
  • No. of Mechanical Operations: 50000
  • Operating Temperature Max: 85°C
  • Operating Temperature Min: 0°C
  • Panel Cutout Size: 28.2 x 11.5 mm
  • Panel Cutout Width: 11.5mm
  • Panel Cutout length: 28.2mm
  • Tab Width: 6.3mm
