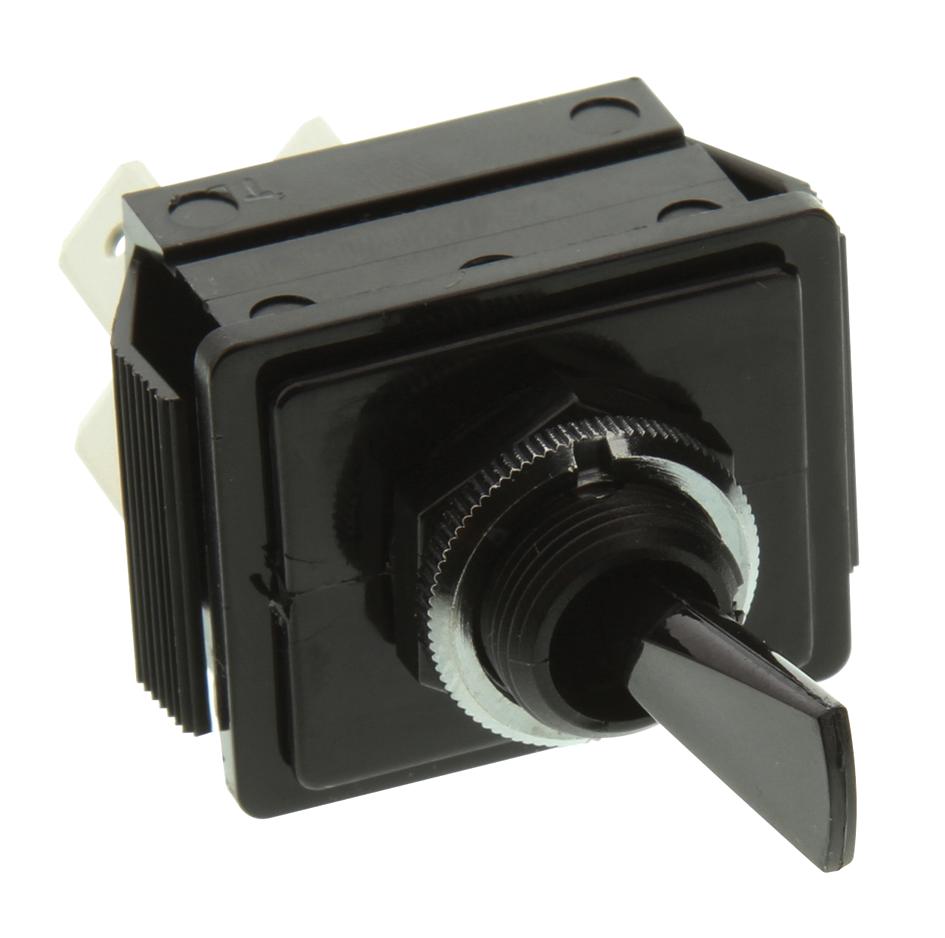

ARCOLECTRIC (BULGIN LIMITED) - C1750HOAAC - Toggle Switch, Off-On, DPST, Non Illuminated, 1750, Panel Mount, 16 A
- Switch Operation: Off-On
- Contact Configuration: DPST
- Illumination: Non Illuminated
- Product Range: 1750 Series
- Contact Current Max: 16A
- Switch Mounting: Panel
- Contact Voltage AC Nom: 250V
- Switch Terminals: Quick Connect, Solder
- Contact Voltage DC Nom: -
- SVHC: No SVHC (27-Jun-2018)
- Actuation Type: Flat Lever
- Bush Thread Length: 10mm
- Contact Current @ Contact Voltage AC Max: 10A
- Contact Current @ Contact Voltage DC Max: 20A
- Contact Current AC Max: 16A
- Contact Current DC Max: 20A
- Contact Current Rating: 16A
- Contact Resistance: 100mohm
- Contact Voltage AC Max: 250V
- Contact Voltage DC Max: 24V
- External Depth: 18mm
- External Length / Height: 32.5mm
- External Width: 25.4mm
- Height: 32.5mm
- Inductive Current Rating: 4A
- Lever Length: 17.8mm
- Operating Temperature Max: 85°C
- Operating Temperature Min: 0°C
- Panel Cutout Diameter: 12.7mm
- Resistive Current Rating: 16A
- Tab Width: 6.3mm
- Thread Size: 15/32" x 32 NS
