C3D04060A Diode, Schottky, 600v, 4A, TO220-2 WOLFSPEED

WOLFSPEEDUGS :C3D04060A Code de commande:1716942

Prix:
Prix ​​promotionnel€2,70

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (511 unité)

Documents et téléchargements

description

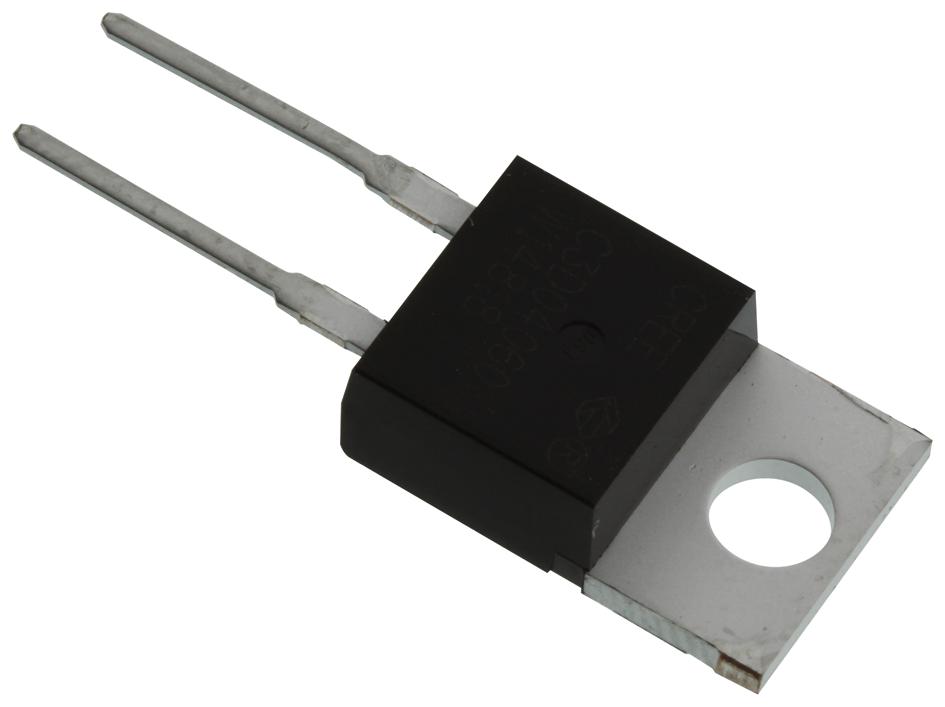

WOLFSPEED - C3D04060A - Silicon Carbide Schottky Diode, Z-Rec 600V, Single, 600 V, 7.5 A, 8.5 nC, TO-220

  • Product Range: Z-Rec 600V Series
  • Diode Configuration: Single
  • Repetitive Reverse Voltage Vrrm Max: 600V
  • Continuous Forward Current If: 7.5A
  • Total Capacitive Charge Qc: 8.5nC
  • Diode Case Style: TO-220
  • No. of Pins: 2 Pin
  • Junction Temperature Tj Max: 175°C
  • Automotive Qualification Standard: -
  • Current Ifsm: 31.9A
  • Diode Type: SiC Schottky
  • Forward Current If(AV): 4A
  • Forward Surge Current Ifsm Max: 31.9A
  • Forward Voltage VF Max: 1.7V
  • No. of Pins: 2Pins
  • Operating Temperature Max: 175°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +175°C
  • Semiconductor Technology: SiC
  • Termination Type: Through Hole
