CD19FD561FO3F Cap, 560PF, 500v, 1%, Through Hole Cornell DUBILIER

CORNELL DUBILIERUGS :CD19FD561FO3F Code de commande:1264892

Prix:
Prix ​​promotionnel€8,09

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Seulement 4 produits disponibles

Documents et téléchargements

description

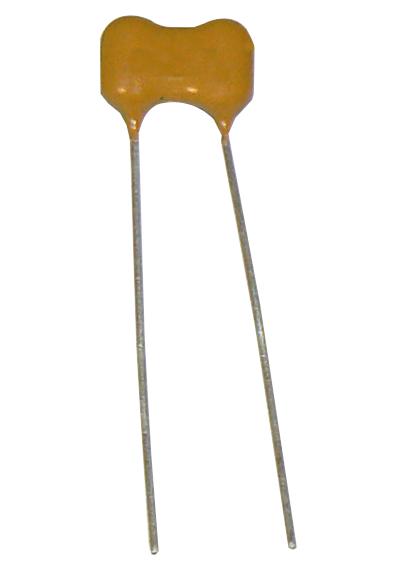

CORNELL DUBILIER - CD19FD561FO3F - Mica Capacitor, Standard Dipped, 560 pF, 500 V, ± 1%, PC Pin, 8.7 mm, Radial Leaded

  • Capacitance: 560pF
  • Voltage Rating: 500V
  • Capacitance Tolerance: ± 1%
  • Product Range: Type CD19 Series
  • Capacitor Terminals: Radial Leaded
  • Lead Spacing: 8.7mm
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 125°C
  • SVHC: No SVHC (15-Jan-2018)
  • Capacitance Tolerance ±: ± 1%
  • Capacitor Mounting: Through Hole
  • External Depth: 5.3mm
  • External Length / Height: 13mm
  • External Width: 16.5mm
  • Height: 13mm
  • Lead Diameter: 0.8mm
  • Lead Length: 2.54mm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -55°C to +125°C
  • Temperature Coeff. +: 70ppm/°C
  • Temperature Coeff. -: 0ppm/°C
  • Temperature Coefficient: 0ppm/°C to +70ppm/°C
  • Tolerance +: 1%
  • Tolerance -: 1%
  • Voltage Rating V DC: 500V
