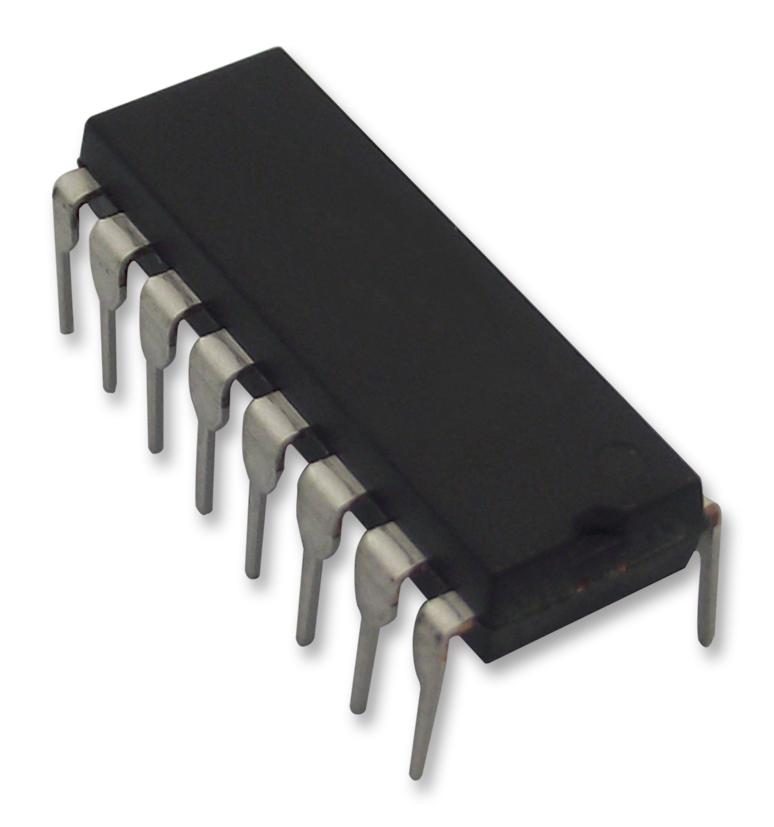

TEXAS INSTRUMENTS - CD4055BE - BCD to 7 Segment Decoder / Driver, 7 Output, 5.8 mA, 3 V to 18 V, DIP-16
- Logic Family / Base Number: CD4055
- Logic Type: BCD to 7 Segment Decoder / Driver
- No. of Outputs: 7Outputs
- Logic Case Style: DIP
- No. of Pins: 16Pins
- Supply Voltage Min: 3V
- Supply Voltage Max: 18V
- Logic IC Family: CD4000
- Logic IC Base Number: 4055
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Applications: Calculators and Meters, General Purpose Displays, Industrial Control Panels, Panel Meters
- IC Applications: Calculators and Meters, General Purpose Displays, Industrial Control Panels, Panel Meters
- Logic IC Base Number: 4055
- Logic IC Function: BCD To 7 Segment Decoder / Driver with Display Frequency Output
- Operating Temperature Range: -55°C to +125°C
- Output Current Max: 5.8mA
- Supply Voltage Range: 3V to 18V
- Termination Type: Through Hole
