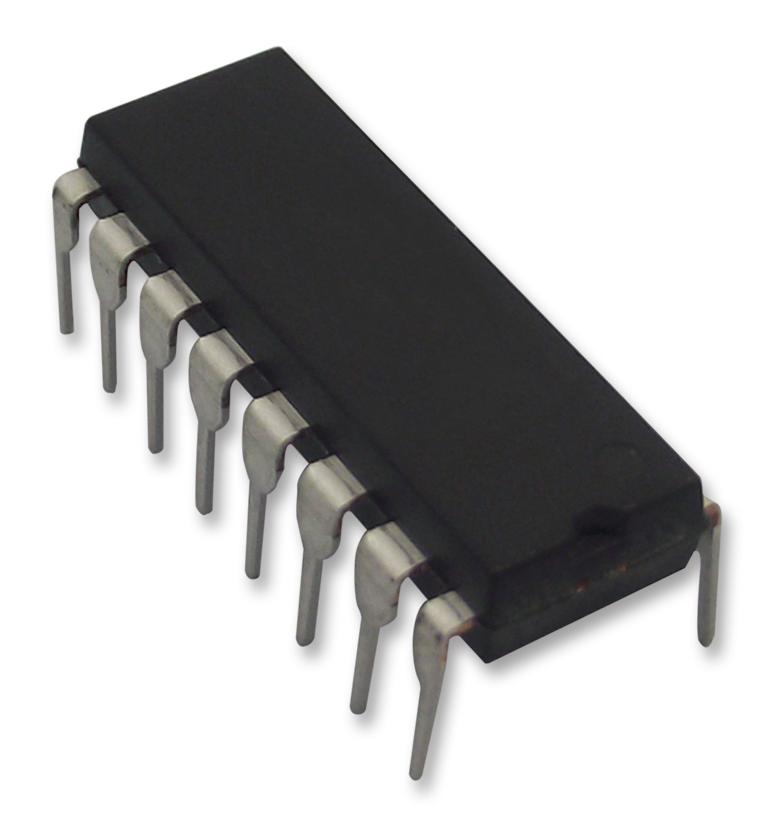

TEXAS INSTRUMENTS - CD4076BE - Shift Register, D Type, CD4076, 1 Element, 4 bit, DIP, 16 Pins
- Logic Family / Base Number: CD4076
- Shift Register Function: -
- No. of Elements: 1 Element
- No. of Bits Per Element: 4bit
- Logic Case Style: DIP
- No. of Pins: 16Pins
- Supply Voltage Min: 3V
- Supply Voltage Max: 18V
- IC Output Type: Tri State
- Logic IC Family: CD4000
- Logic IC Base Number: 4076
- Operating Temperature Min: -55°C
- Operating Temperature Max: 125°C
- Product Range: CD4000 LOGIC Series
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Base Number: 4076
- Frequency: 16MHz
- IC Generic Number: 4076
- Input Current Max: 1µA
- Logic Function Number: 4076
- Logic IC Base Number: 4076
- Logic IC Function: 4-Bit D-Type Register with Clock and 3-State Outputs
- Logic Type: Register, D Type
- No. of Elements: 1Elements
- Operating Temperature Range: -55°C to +125°C
- Power Dissipation Ptot Max: 500mW
- Supply Voltage Range: 3V to 18V
- Termination Type: Through Hole
