CK05BX472K Cap, 4700pF, 100V, 10%, X7R KYOCERA Avx

KYOCERA AVXUGS :CK05BX472K Code de commande:286990

Prix:
Prix ​​promotionnel€2,89

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (445 unité)

Documents et téléchargements

description

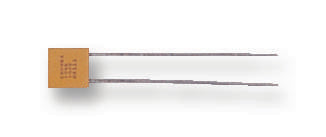

KYOCERA AVX - CK05BX472K - Multilayer Ceramic Capacitor, 4700 pF, 100 V, ± 10%, Radial Leaded, X7R, 5.08 mm

  • Capacitance: 4700pF
  • Voltage Rating: 100V
  • Product Range: CK05 Series
  • Capacitance Tolerance: ± 10%
  • Capacitor Terminals: Radial Leaded
  • Dielectric Characteristic: X7R
  • Lead Spacing: 5.08mm
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 125°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (27-Jun-2018)
  • Capacitance Tolerance ±: ± 10%
  • Climatic Category: 55/125/56
  • External Depth: 2.29mm
  • External Length / Height: 4.83mm
  • External Width: 4.83mm
  • Height: 4.83mm
  • Insulation Resistance: 100000Mohm
  • Lead Diameter: 0.64mm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -55°C to +125°C
  • Power Factor: 0.025
  • Proof Voltage: 250V
  • Temperature Coeff. +: 15ppm/°C
  • Temperature Coeff. -: -15ppm/°C
  • Temperature Coefficient: ± 15ppm/°C
  • Tolerance +: 10%
  • Tolerance -: 10%
  • Voltage Rating V DC: 100V
