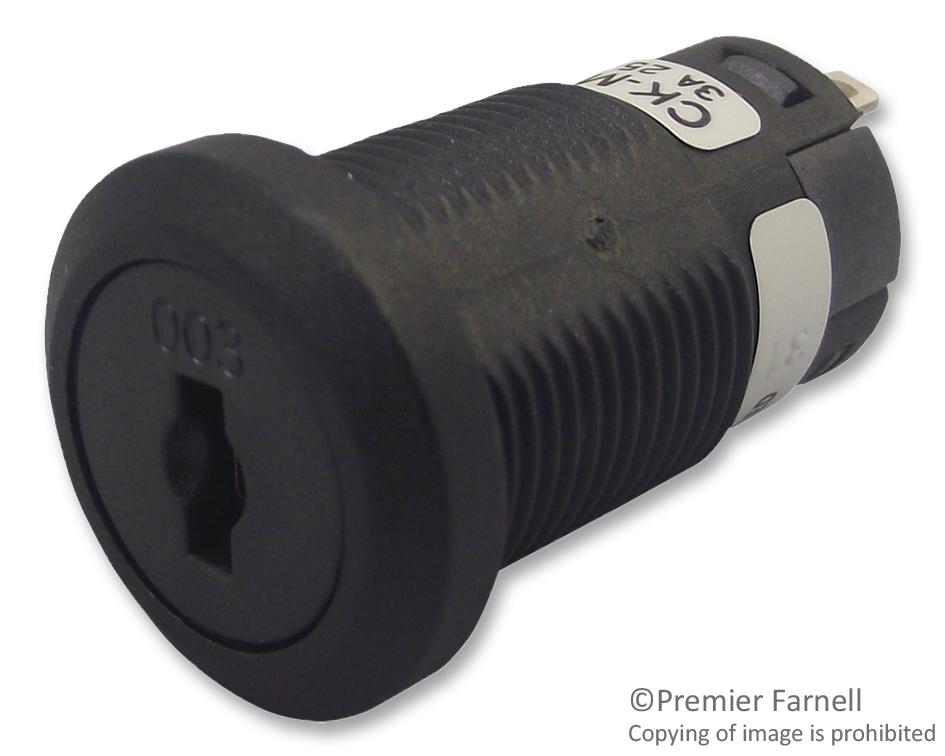

NKK SWITCHES - CKM13EFW01 - Keylock Switch, On-Off-On, SPDT, CK, 3 Position, Solder, 3 A
- Switch Operation: On-Off-On
- Contact Configuration: SPDT
- Product Range: CK Series
- No. of Switch Positions: 3 Position
- Switch Terminals: Solder
- Contact Current Max: 3A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: -
- Angle of Throw: 45°
- SVHC: No SVHC (15-Jan-2019)
- Actuation Type: Flat
- Actuator Type: Flat
- Bezel Diameter: 22mm
- Bush Diameter: 16mm
- Bush Length: 17mm
- Contact Current @ Contact Voltage AC Max: 3A
- Contact Current @ Contact Voltage AC Min: 3A
- Contact Current AC Max: 3A
- Contact Current Rating: 3A
- Contact Resistance: 20mohm
- Contact Voltage AC Max: 250V
- External Length / Height: 69.8mm
- Full Angle: 90°
- Indexing Angle: 45°
- Insulation Resistance: 1000Mohm
- No. of Electrical Operations: 10000
- No. of Mechanical Operations: 30000
- No. of Positions: 3Ways
- Operating Temperature Max: 70°C
- Operating Temperature Min: -25°C
- Panel Cutout Diameter: 19mm
- Panel Cutout Width: 17.2mm
- Termination Method: Solder / Push-On
- Thread Size: M19 P1
