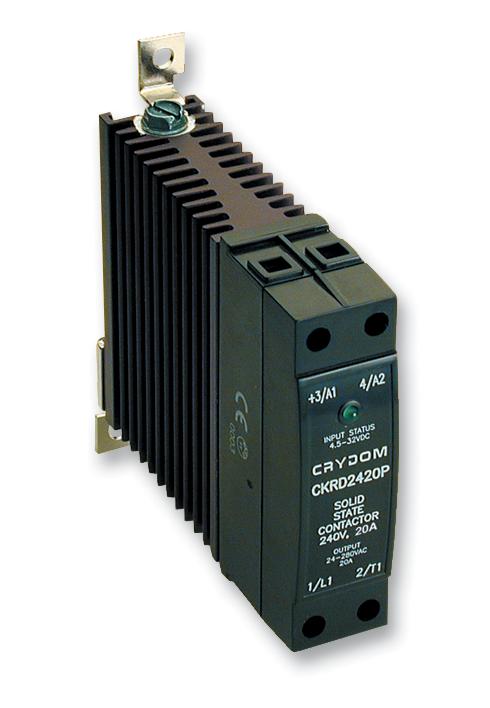

SENSATA/CRYDOM - CKRA2420 - Solid State Relay, SPST-NO, 20 A, 280 Vrms, DIN Rail, Cage Clamp, Zero Crossing
- Contact Configuration: SPST-NO
- Load Current: 20A
- Operating Voltage Max: 280Vrms
- Relay Mounting: DIN Rail
- Relay Terminals: Cage Clamp
- Switching Mode: Zero Crossing
- Operating Voltage Min: 24Vrms
- Control Voltage Min: 90VAC
- Control Voltage Max: 280VAC
- Product Range: -
- SVHC: No SVHC (12-Jan-2017)
- Approval Bodies: CE, CSA, VDE
- Approval Category: UL Recognised
- Blocking voltage: 600V
- Control Current Min: 2mA
- Control Current Typ: 4mA
- Control Voltage AC Max: 280VAC
- Control Voltage AC Min: 90VAC
- Control Voltage Range: 90V AC to 280V AC
- Control Voltage Type: AC
- External Depth: 99mm
- External Length / Height: 81.3mm
- External Width: 22.5mm
- I2t: 260s
- Insulation Resistance: 1000Mohm
- Leakage Current: 10mA
- Load Current Max: 20A
- Load Current Min: 150mA
- Load Current RMS Max: 20A
- Operating Temperature Max: 80°C
- Operating Temperature Min: -40°C
- Operating Voltage Range: 24Vrms to 280Vrms
- Output Type: SCR
- Peak Surge Current: 250A
- Power Factor: 0.5
- RMS Load Current Min: 0.15A
- Turn On Time: 10ms
